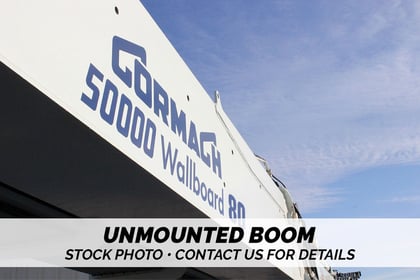

New Cormach 50000 WB80

New

New Cormach 50000 WB80

Stock # BM-3368

Available

Contact For Price/Rate

Request a quote

Features and Options

Features

- Lifting Moment 464,663 ft/lbs - Horizontal reach and capacity 80'4" -2270 lbs - Vertical reach and capacity 90'6" -6834 lbs - Continuous rotation - Operator platform and ladders - Hydraulic oil cooler (12V) - Hydraulic swivel for auto grease through the collector - Load limit device–stops crane if overloaded - Hydraulic out and down outriggers: 25’ span - Supplemental Outriggers: 19' span - Four 19” round outrigger ground plates - 66-gallonoil reservoir on crane base - Danfoss Control Valves - Operating pressure:4640 psi - Pump capacity: 32 gpm - Top seat lever controls and foot pedals - Dual side controls for outriggers at base - Holding valves on all cylinders - JIC Fittings/SAE hoses - Central grease system - Installation kit - Painted white and blue

Included options

- Sunfab load sense piston pump, model SVH 5092 (note: requires heavy duty 8 bolt PTO) - Operator platform and ladders - Hetronic radio remote controls–seven function - Hydraulic oil cooler - Hydraulic swivel for auto grease line through the collector - Outrigger legs (four) with ball foot in lieu of standard - Deduct for non-supply of 20” round outrigger ground plates (4) - Deduct for non-supply of operator top seat

VIEW LOAD CHART

Product Specs

Spec Sheet Download

Location : Kansas City, KS
Ton-Meters : 64.24
Ton Rating: 2.53
Boom (ft) : 79
Type : Material Handling Equipment
Hi-Rail : No
Stories: 8
