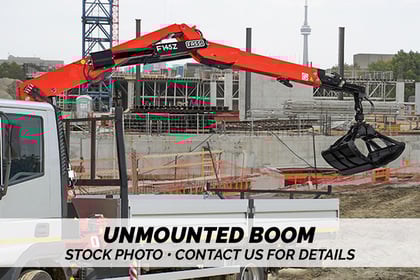

New Fassi F145AZ.0.22

Stock # BM-4116

Contact For Price/Rate

Request a quote

Features and Options


Crane version that can be folded behind cab with the hydraulic implement installed and with top seat controls. Lifting moment: 100979 lbs. ft Standard hydraulic reach: 27' 3" Max hydraulic horizontal outreach in loading configuration: 26' 9" Load at the max horizontal outreach: 3748 lbs. Manually extendable outriggers with max spread of 12' 1". Outrigger rams have jointed plate in Monocast material. Casted steel column support and lower column section for ideal stress distribution and greater resistance. The drastic reduction of welds on the base group provides the crane with characteristics of exceptional resistance to fatigue. Centralized lubrication system of the base to guarantee easier access for maintenance and control operations. Rack and pinion rotation system with self-centering cast iron wear pad to ensure the correct and constant coupling between the pinion and the rack, avoiding the wear and tear of the teeth. Rotation angle: 415°. Rotation torque: 15493 lbs. ft Top seat crane controls by n. 2 S900 distributor banks positioned beside the seat with joysticks and foot controls. Microswitch for oil cut off if operator not seated. N. 2 supplementary activated controls with hoses protection device for grab and rotator. Left distributor bank functions: -Joystick: rotation and outer lift ram. - Foot control: supplementary function (grab). Right distributor bank functions: -Joystick: inner lift ram and supplementary function (rotator). -Foot control: extension booms. Special guide shoes material with high sliding degree and low greasing request. 24-gal. oil tank, particularly resistant to shocks and the corrosive action of any external element. 17636 lbs. boom tip swivel hook.

Included options

Hydraulically extra extendable outriggers Hydraulic extra extendibility of lateral outrigger supports for a total spread of 15' 9". Oil cooler Oil/air cooling system composed by an oil cooler type 60/12 completed with thermostatic valve and cooling fan installed on the cranes with pump capacity up to 16 gals/min and 12V. vehicle battery. Long fixing rods Long fixing bolts for crane fixation to the vehicle chassis, in place of standard ones. Switch for work light Switch for work light on/off placed near the distributor bank N. 2 work lights N. 2 LED work lights mounted on inner boom. Orange LED marker lights for crane outrigger Orange LED marker lights to be installed on the crane outrigger rams to highlight the overall dimensions during the crane utilization.

Product Specs

  • Location : Kansas City, KS
  • Ton-Meters : 13.96
  • Ton Rating: 3.08
  • Boom (ft) : 26
  • Type : Knuckle Boom Cranes
  • Hi-Rail : No
