Features

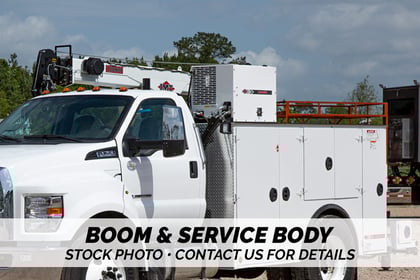

IMT Dominator: 11' heavy duty galvannealed steel crane body with standard right rear crane mount, Hitch reinforcement and 2” hitch receiver tube and 7 blade trailer light plug receptacle. Body style with 60" H x 22” D left side compartments, 60” High right front 1-2 compartments, bed has six (6) recessed tie downs and three-point rear step access package. Fully integrated and sealed electrical system, LED DOT stop, tail, turn, marker and backup body lights and backup alarm. Exterior primed and painted, interior of compartments painted with IMT compartment coat and entire understructure undercoated. Mud flaps and rubber fender extensions. Interior Compartment Options: • LV1 –Roll out painted drawer set, 1-7”/2-5”/5-3” drawers with shelf above • LV2–Three adjustable shelves • LH-One adjustable shelf • LR–Three adjustable shelves • RV1–Raised, Two bottle oxygen acetylene holders & J-Hook, • RV1 –Raised, 60” high -divider kit & three adjustable shelves • RV2 –Three adjustable shelves • RH–One adjustable shelf • RR–Power distribution box and air system components Compressed Air System: CAS40PL –40 CFM @ 100 psi, two-stage 4-cylinder reciprocating air compressor driven by a 10GPM hydraulic motor that includes an open center Integral on-off manifold with solenoid diverter valve and hydraulic pressure relief valves, integrated air interchange and after coolers, temperature shutdown, air pressure relief valve and vibration isolation. The compressor housing is aluminum sheet metal which is powder coated IMT white. 33.7”L x 21.00”W x 24.3”H and weighs 245 lbs. IMT 10000 Hydraulic Crane: IMT Model 10000-25FTTelescopic PTO hydraulic driven field service crane: 10,000 Lb. maximum crane rating , 400 degree rotation, double-acting cylinders with integral holding and/or counterbalance valves, four section remote control valve, proportional radio remote control (includes radio elimination cable for non-radio frequency operation), return filters, boom mounted 60 ft/min hydraulic planetary winch, crane hook, snatch block, anti-two-block device, hydraulic overload shutdown system, decals and installation kit.

Included options

Other Features Included: • LED Interior compartment lights –strip lights on sides of door openings • Four12V LED flood lights –one each side on front and two on rear of body • IMT master locking system • Aluminum rock guards on front of each side pack • 10” Fold down tailgate kit • 2” Hitch receiver tube with 7-Blade trailer plug receptacle • Rear step with metal tread and handhold -left rear • Block box storage on right sidepack under crane • D.O.T. LED style taillight and reflector kit • ICC Safety Kit and fire extinguisher in cab • Top deck mounted hydraulic reservoir –located against front bulkhead • PTO and main hydraulic pump included • Add springs and adjust suspension for unit leveling • Entire exterior of body painted White to match cab Air System Features Include: • Spring rewind hose reel with .50” x 50’ hose and quick coupler • In-line moisture separator/filter-lubricator-regulator • ASME certified under deck air receiver tank Crane Features Included: • 10000-25Ft Crane painted IMT N0006 white with black cylinders • Two hydraulic extensions with flip sheave to 24’-8” (weight 2,290 Lbs.) • Proportional radio remote control with engine and compressor stop/start functions • Rear hydraulic power extending (crane side) hydraulic up/down stabilizer kit • Two boom tip LED flood lights • Adjustable boom support mounted on body
