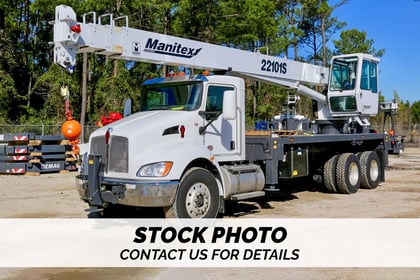

New Manitex 22101S Tandem Axle on New Peterbilt 548

New

New Manitex 22101S Tandem Axle on New Peterbilt 548

Stock # BM-4347

Available

Contact For Price/Rate

Request a quote

Features and Options

Features

*3 or 4 Section Telescopic Boom w/Quick Reeve Boom Head *2-speed Hoist w/ Grooved Drum & Hoist Drum Rotation Indicator *Boom Hoist Cylinder *3-Load Sheave Quick Reeve Boom Head * Anti-Two Block w/ Lockout *Pilot Controls *System Pressure Gauge *360° Area of Operation * Continuous Rotation * Ride-around Operator Station with Seat *Removable Boom Rest *Engine Start/Stop *Operator's Service/Parts Manuals *Boom Length and Angle Indicators *Lower Frame for 13' (3.95m) Flatbed *Outrigger Monitoring System for Verification Only *7 Ton (6,4 mt) Hook and Ball *300' of 9/16" (14.3mm) EIPS IWRC Wire Rope *70 Gallon (265 liter) Reservoir w/Suction Strainer & Ball Valve *Turret, Rotation Bearing & Swing System *Load Moment Indicator-Audio/Visual Alert w/ Shutoff *Audible Outrigger Motion Alarm *4 Out-and-down Outriggers, 19'9" (5.99m) Spread including Capacities for Intermediate 13'6" (4.12m) and Retracted7'3" (2.21m) Spreads ON TANDEM AXLE CHASSIS ONLY *2 Retractable Ladders for Easy Access to Bed *3-Section Hydraulic Gear Pump -Counterclockwise Rotation Standard *Signal Horn *Oil Cooler *Electronic Throttle

Included options

101' Four-Section Telescopic Boom-Radio ATB-Single Axle 13' Steel Bed Hydraulic Reservoir Tank Top Mount (for CabOver Chassis) 3 Section Vane Pump ClockWise Rotation Hotshift PTO Drive Shaft for Pump Installation

VIEW LOAD CHART

Product Specs

Spec Sheet Download

Location : San Diego, CA
Ton Rating: 22
Boom (ft) : 101
Type : Boom Trucks
Engine : PACCAR PX-9
Horsepower : 360
Transmission : Allison Automatic
Suspension : Spring
Hi-Rail : No
