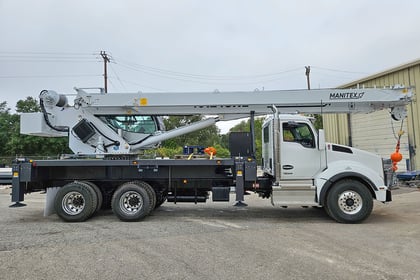

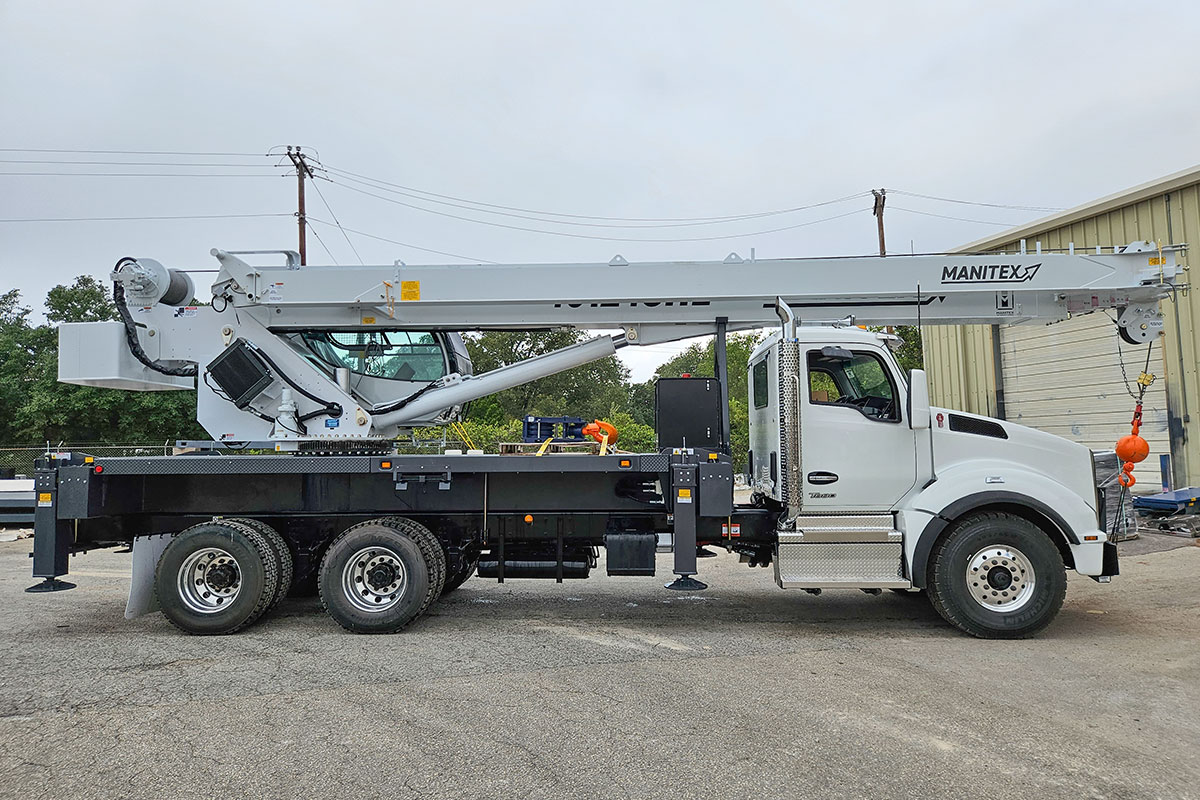

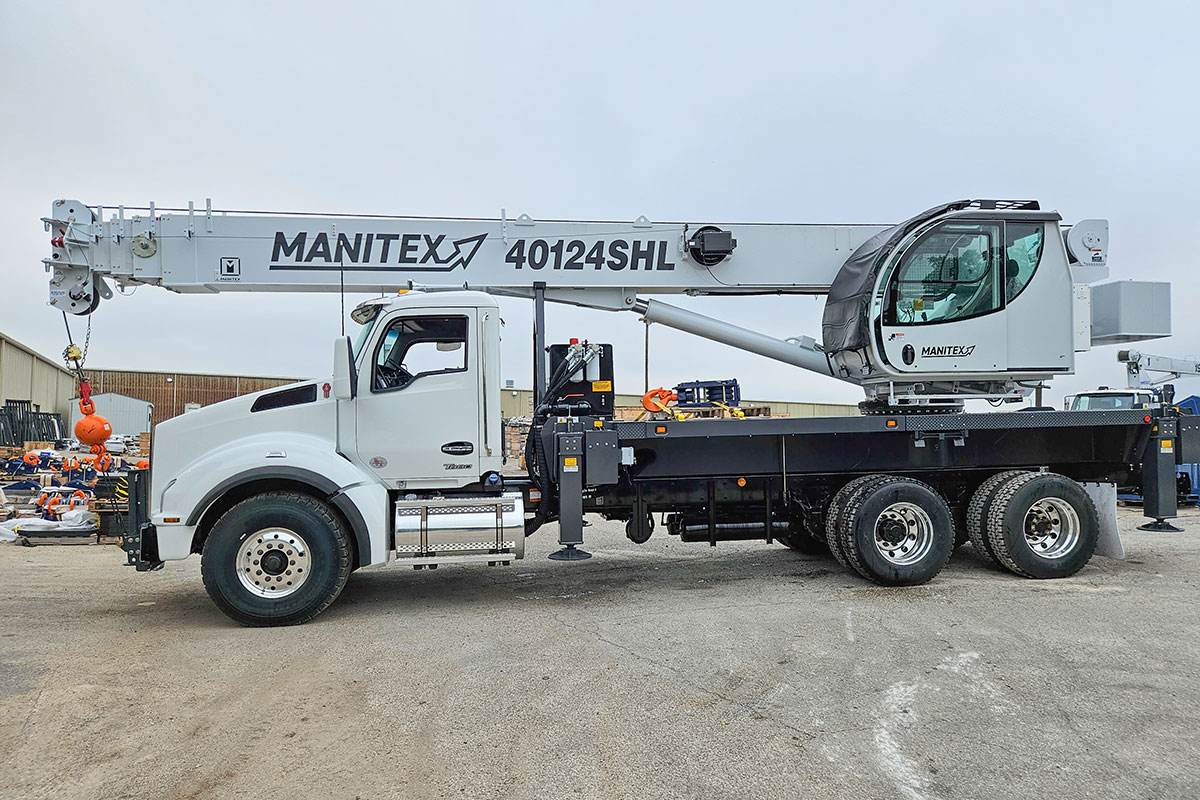

New Manitex 40124SHL SWB on New Kenworth T880

Stock # BM-4394
Available

Contact For Price/Rate

Request a quote

Features and Options

Features

Features 40 Ton (36.3 mt) Capacity 5-Section 124’ (38,7 m) Proportional Boom Self –Lubricating Boom Slider Pads Continuous Rotation Pilot Operated Controls Outriggers Out and Down Style with Motion alarm and Monitoring System for Verification only ROC Solid – Radio operated handheld controller for outrigger and Front Bumper Stabilizer Externally Wired Anti-Two Block Load Moment Indictor with Digital Display, CANbus, Overload Shutdown Rugged, Weatherproof Electrical system with circuit Status LEDs Tilting Cab with Heater, Windshield Cover, Upper Hatch Guard System Pressure Gauge Oil Cooler Specs BOOM Inverted T-cross section designed for optimum strength to weight ratio; 4-section telescoping type, extended and retracted proportionally by a double-acting hydraulic cylinder and a cable-crowd system. Fitted with easily replaceable self-lubricating wear pads for smooth operation. Quick Reeve Boom Point – Fitted with two upper and three lower high-density nylon load sheaves mounted on heavyduty roller bearings. Removable pin-type rope guards. Boom Elevation – Double-acting hydraulic cylinder. Working range from 5° below horizontal to 75° above. Load Hook – 5-ton (4,5 mton) capacity hook with heavyduty swivel and weight is provided for single-line operation. Jib (Option) - Inverted T-cross section designed for optimum strength to weight ratio. 2-Section Jib 30’6 (9,3 m) to 55’ (16,8 m), Offsetting (0°, 15°, 30°); manually extended. Features Jib Jack and stow bracket design for one-man operations. Compatible with models 40100s and 40124S. HOIST Planetary reducer with wet multi-disc spring applied, hydraulically released internal brake and grooved drum; negative draft angle on drum flange and load line tension roller virtually eliminates load line stacking while spooling. High efficiency two speed hydraulic motor equipped with patented brake valve for precise lowering. Main Hoist – Maximum theoretical line speed 453 fpm (138 mpm); maximum theoretical bottom-layer line pull 13,050 lbs (5,919 kg). Auxiliary Hoist (Option) - Same as Main Wire Rope – 380 ft. (115,8 m) diameter. Low Torque type; a designed balance between rope lay and strand lay offers characteristics similar to those attributed to rotation resistant ropes at a 3.5:1 safety design factor. SWING SYSTEM Continuous rotation, free swing system assists in tandem lifting and centering of boom over loads. Externally mounted, double-reduction planetary gearbox driven by hydraulic motor. Equipped with a dual brake system; spring-applied hydraulically-released Parking Brake and a foot actuated Dynamic Service brake. Ball-bearing swing circle with external gear. OUTRIGGERS Out-and-down style outriggers, operated independently for precise leveling. Fully extended, intermediate extension and fully retracted outrigger beam positions. Bubble levels located in operator cab and near outrigger manual controls. Maximum outrigger spread 22’ (6,7 m), Intermediate outrigger spread 14.3 ft (4,4), 16” (406,4 mm) diameter floats. Front Bumper Stabilizer - Single stabilizer assembly mounted at the front of the truck (required); maximum float load is controlled by preset counterbalance valve to prevent overloading the stabilizer. This feature requires truck front frame extensions, consult factory. MOUNTING Lower frame is mounted to chassis by threaded rods and clamp plates. No welding, drilling, or bolting to truck frame is required. Lower Frame – Torsionally resistant, rigid 4-plate design with integrated outriggers and pedestal. Rear Underride Protection – Standard on factory-mounted cranes. Fabricated structure mounted under rear of crane. Complies with Bureau Motor Carrier Safety Standard 393.86. Boom Rest – Heavy-duty fabrication. Easily removed to simplify loading and unloading truck deck. CONTROL SYSTEM Single cab enclosed operator platform and seat mounted to turret. Four “pilot operated” single-axis crane controls provide precise metering and multifunction capability; winch control fitted with hoist drum rotation indicator (HDRI). Controls are arranged in accordance with ANSI B30.5 standards. The operator station also includes engine start/stop, electronic foot throttle, signal horn, load moment indicator display, view of boom angle indictor, load chart, range diagram and the Manitex ACCUSwing control that allows the operator to adjust swing speed up to a maximum of 2.0 rpm. The operator can with a switch change from no-free swing to free swing.

Included Options

Basic Machine 124' Five-Section Telescopic Boom LMI 40124SHL 2 Piece Jib 30' 6"-55' Jib (QA/G) (124' Boom Only) 8' Steel Bed with Short Sub-Frame Lower Frame Short Continuous Rotation Boom Rest Short Lower Standard Mounting Braden Winch-380' rope (in lieu of Dinamic Standard) Air Conditioning Video Camera (1 Camera-Winch) Clockwise Pump Hot shift PTO Drive Shaft for Pump Installation 35 ton 3-Sheave Block for 1-6-part line Hydraulic Tank 115-Gal Top Mount Front Center Stabilizer

Product Specs

  • Location : Houston, TX
  • Ton-Meters : 0
  • Ton Rating: 40
  • Boom (ft) : 124
  • Type : Boom Trucks
  • Engine : Cummins ISX15
  • Horsepower : 500
  • Transmission : Eaton Fuller Ultrashift
  • Suspension : Hendrickson PRIMAAX Air
