Features

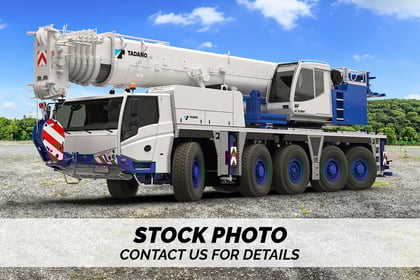

CRANE CARRIER • Mercedes-Benz OM471LA; Diesel engine; 340 kW/ 1600 1/min (462 HP), torque 2200 Nm / 1300 1/min; The engine complies with EU Stage V / Tier 4F; Exhaust system cpl. stainless steel with SCR catalyzer • Fuel tank 400l Diesel (no RME/ Bio-Diesel); 40l Tank for Ad Blue • ZF TraXon; Automated gearbox with integrated hydraulic secondary retarder brake, 12 forward speeds a nd 2 reverse; 2- stage transfer case with switchable longitudinal lock • 10x6x10; 5 axles, axles 2, 4 and 5 are driven and equipped with disengage able axle-differential lock; Axle 4 with a disengage able centerdifferential lock; All Axles are steered • Hydro pneumatic suspension with axle load compensation; hydraulically lockable; Manual or automatic leveling alternatively; • Dual-circuit steering system with independent rear axle steering; axles 1 and 2 mechanically connected; axle 3, 4 and 5 electro-hydraulically connected; all axles steered with • Pneumatic dual circuit service brake, acting on all wheels; Disc brakes; Hydraulic retarder integrated into transmission as wear less, sustainedaction brake; Additional exhaust brake; Parking brake according to norms • ABS with hill-start aid for hill starts without downhill moving • Wheels 385/95R25 (14.00R25); Steel rim 9,5-25/1,7"; Bridgestone VHS 170F • Wheel nut caps with arrow enable optical check of wheel nut position • Type 2,69m; Adjustable driver seat, armrests and pneumatic suspension; Steering wheel height and tilt adjustable; Seat heating driver's seat; Codriver seat; Power door windows; Tinted glass; Power mirrors with heater • Digital radio with USB input, Aux-In and Bluetooth® connection • Engine-dependent warm water heating with 11kW heating power • Air-condition for carrier cab with 7kW cooling capacity • Display of the speed and record according to country-specific regulations • Automatic speed control • Display in carrier cab; Cameras installed on rear of vehicle • With hold er in carrier cabin • Prevents uncontrolled vehicle mobilization; Incl. 2 ignition keys with transponder and 2 ignition keys without transponder • Battery disconnecting switch for disconnection of the voltage source and the on-board power supply in carrier • Including low beams, high beams, daytime running lights, fog lights and cornering lights • 2 x work lights on outriggers left, 2 x work lights on outriggers right • 2x beacons on carrier cab • Automatic central lubrication system for the majority of the lubricating points on the chassis • H-4-Point design; Vertical and horizontal movement fully hydraulic; Manual or automatic outrigger levelling alternatively on both sides of carrier; • 5 outrigger bases of 2.5m, 4.1m, 5.0m, 6.2m und 7.5m • 4 square outrigger pads 542mm x 542mm with transport position at vertical cylinder • Surveillance of each outrigger beam for detection of horizontal stroke; Warning in case of anomaly in Superstructure cab (Attention: There is no automatic linkage with the LMI-system) • The outrigger load is indicated in the operator cab and the outrigger control box • HD-batteries for optimal battery performance even under HD usage; Suitable for cold start • Jump starting device as per NATO standards; Enabling jump start by using separate energy source • Continuous reflective strips on the sides of the chassis and in the back • Emergency roadside kit for crane operation and for public road access of trucks according to StVZO • Toolkit for light repairs and service • 10m long jumper cable with both sided NATO-plug, adequate for use with any jump starting device with NATO-plugs • Loose stepladder for misc. assembly work; Incl. transport storage • Single basecoat, topcoat in TADANO-BlueWhite, chevron warnings in red-white • Standard acceptance test for carrier CRANE SUPERSTRUCTURE • Mercedes-Benz OM934; 129kW / 2200 1/min (175HP), torque 750 Nm / 1200-1600 1/min; The engine complies with EU Stage V / Tier 4F; Exhaust system cpl. stainless steel with SCR catalyzer • 11.4m -60m; Single cylinder telescoping system, automatic telescoping; Attachments for all equipment and extensions; 6 sheaves integrated in boom head for max. capacity of 94.8t • 1 luffing cylinder with automatic lowering brake valve • 1 slewing gear unit with spring-loaded multi-disc brake • Additional mechanical locking of sup erstructure and carrier in position 0° and 180° • Hoist with spring-loaded multi-disc brake; Resolver (hoist rotation indicator) • Counterweight 24t, 7 pieces; Expandable to max. 35.4t • Fuel tank 230l Diesel (no RME/ Bio-Diesel); 25l Tank for AdBlue • Enabling 4 simultaneous working movements; electric pilot controls via 2 two-axis joysticks • IC-1, with integrated load moment indicator acc. EN13000; Color display; Displaying of current operating conditions, load charts, fault indicator; • Signal lights indicating LMI-load; Crane data logger • Makes it possible to work with asymmetrically extended outriggers • Displaying and programmability of the work range limits by AML-F • Safety device which prevents the load to be lifted from swaying while lifting it up; Activated by switch in operator cabin • Visualization H1 by a camera system; Displayed on additional screen for the hoist monitoring in superstructure cabin • Type 0,872m; 12° tiltable seat incl. control panel; Fold-out front window; Extendable side pedestal, front pedest al; Handrails; Tinted safety glass; • Pull-down sun visor and light curtains; Sitzheizung • Digital radio with USB input, Aux-In and Bluetooth® connection • Engine-dependent warm water heating with 8kW heating power and auxiliary, engine independent warm water heating with 5kW heating power; • With timer and remote start • Air-conditioning with 4.5kW cooling capacity • Outrigger positioning from crane cabin; Incl. blind spot camera • Disconnect able, to allow use with all extensions • Disconnect able red LED beacon, to all ow use with all extensions • Two adjustable floodlights, mounted at front of boom base section • 1x work prefield at superstructure cab; Work light is manually adjustable • 2x Disconnect able on superstructure tail • Central auto lube for all lubrication points at superstructure • Jump starting device as per NATO standards; Enabling jump start by using separate energy source • Single basecoat, topcoat in TADANO-Blue White, chevron warnings in red-white • Standard acceptance test for superstructure • Documentation includes 1x operating instructions digital and 1x printed, 1x lubrication and maintenance instructions digital and 1x printed, 1x • Spare parts catalogue digital, 1x load charts digital; Digital files delivered on USB stick

Included options

ADDITIONAL EQUIPMENT: EXTENSION • HAV-HY 18m incl. runner (3.7m / 10.1m / 17.9m swing-away jib, hydraulic offset 0°/22°/45°; Incl. transport storage) • 2 insert sections 7m • R1 (Swing away rooster sheave) (Extended boom point sheave) ADDITIONAL EQUIPMENT: HOOK BLOCKS • Hook block 63t, 3-sheaves, double hook •Hook block 32t, 1-sheave, single hook •Swivel hook 10t ADDITIONAL EQUIPMENT: CARRIER • Axles 10x8x10 • Active tire pressure monitoring system • Tool box rear • Air and Electrical connections without Towing Hook • Additional rear light (Reversing lights rear) • Additional rear light at side mirrors (Reversing lights on the side mirror) • Engine-independent heating carrier • Omit EN1300 • Rear Folding Bumper ADDITIONAL EQUIPMENT: SUPERSTRUCTURE • Additional counterweight 11.4t (2 pieces; For max. 35.4t) • Removable cwt for 0t • 2nd hoist (H2) • Self-rigging H2 • Balancing cwt (Compensation weight of 1.3t instead of H2) • Hour meter for hoist 1 (H1) • Hour meter for hoist 2 (H2) • Foot pedal for telescoping • Dolly preparation loose (Free slewing and derricking for dolly operation) • Dolly brackets ADDITIONAL EQUIPMENT: HANDING • Fall protection system main boom • Emergency stop device electric (Emergency engine stop for carrier and superstructre) • Hello-Net telematics system SPECIAL EQUIPMENT: WHEELS • Wheels 525/80 (20.50R25) Bridgestone • Spare wheel 525/80 (20.50R25) Bridgestone SPECIAL EQUIPMENT: PAINTING • Painting TAC catalog scheme in Grey and White • Conservation sea shipment SPECIAL EQUIPMENT: COLD & HOT WEATHER • Additional HY-oil cooler OTHERS • Un-installation of Tachograph • Additional paper manual 1 set OM, PC (Std. 1 set) • Additional USB manual 1 set OM, PC (Std.1 set) • Compliance to USA regulations
