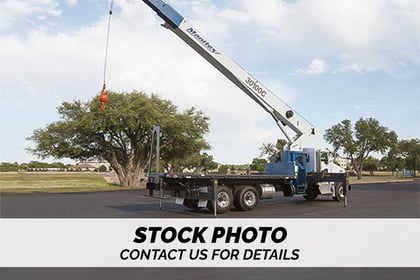

New Manitex 30100C on New Kenworth T480

Stock # BM-4361
Available

Contact For Price/Rate

Request a quote

Features and Options

Features

Features

  • 30 Ton (27,3 mton) Capacity
  • 4-Section 100' (30,1 m)
  • 110.6' (33,7 m) Maximum Main Boom Tip Heights
  • 157' (47,8 m) Maximum Tip Height with extension
  • 23.3' 6" (6,8 m) A-frame Outriggers Fully Extended
  • 2-Speed Planetary Hoist with Grooved Drum and Negative Draft Flange
  • Wired Load Moment Indicator with crane function cut-offs for overload protection
  • Externally wired anti-two block system
  • Rugged, Weatherproof Electrical System with Circuit Status LEDs
  • Removable Boom Rest
  • System Pressure Gauge
  • Clamp-On Mounting
  • Aeroquip STC (Snap to Connect) Hydraulic Fittings
  • Manitex UPTime Comprehensive Support

Included Options

Basic Machine w/ 100' Four-Section Telescopic Boom A-Frame W/Legacy Turret 2 Piece 26' -46' Jib 102' Boom Greer (G/RS) 21' HH Steel Bed x 96" Standard Mount Installation 3 Section Vane Pump-Clockwise Rotation (Required with Automatic Transmission) Hot shift PTO (Required with Automatic Transmission) Drive Shaft for Pump Installation (Required with Automatic Transmission) 15 ton 1 - Sheave Quick Reeve Block Front Center Stabilizer Control valve for operation of single stabilizer (Required w/FBS) Alumi num Tool Box (48"L x 24"W x 24"H) Chassis Mount NET SELLING PRICE

Product Specs

  • Location : Houston, TX
  • Ton-Meters : 0
  • Ton Rating: 30
  • Boom (ft) : 100
  • Type : Boom Trucks
  • Engine : PACCAR PX-9
  • Horsepower : 360
  • Transmission : Allison Automatic 6SP
  • Suspension : Hendrickson HAULMAAX Spring
