Features

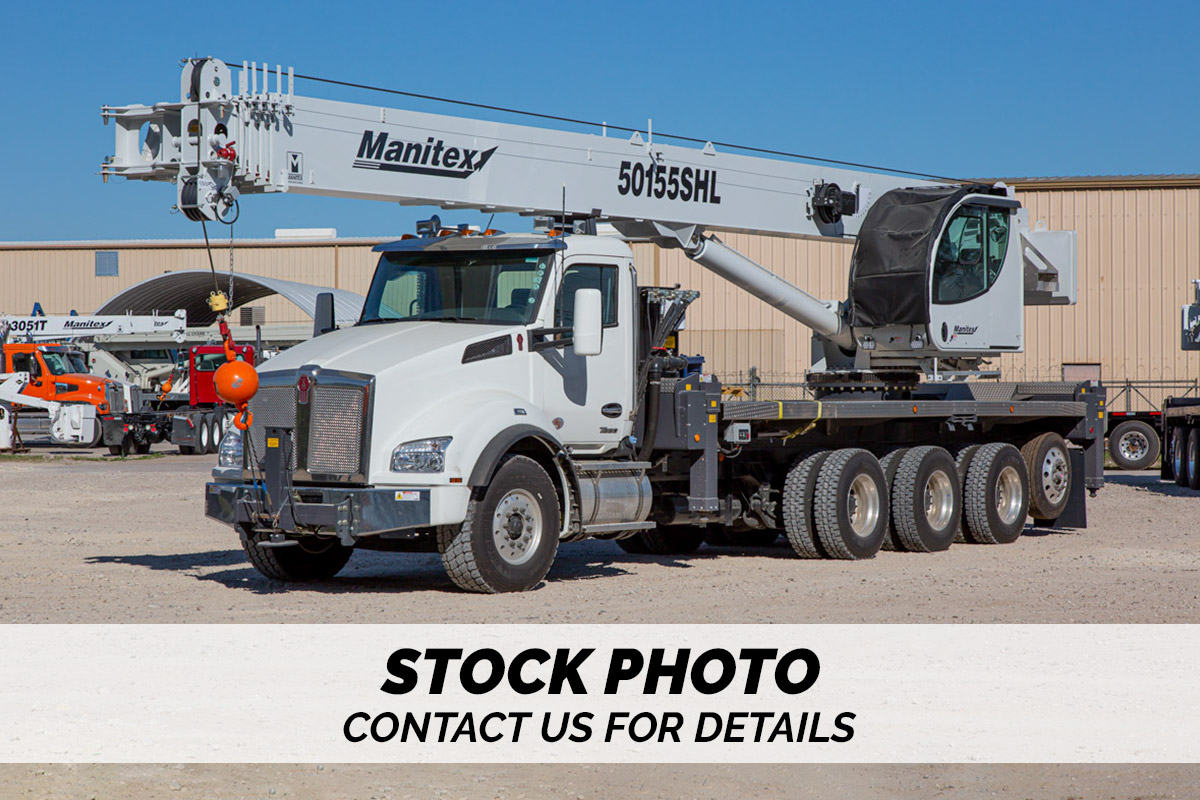

Manitex 50155SHL boom truck Specs - 2-speed Hoist w/ Grooved Drum, Roller Tensioner, Piston Motor - 4-Load Sheave Quick Reeve Boom Head - Hard Wired Anti-Two Block w/ Lockout - Boom Hoist Cylinder - System Pressure Gauge - 360° Area of Operation - Continuous Rotation - Tilting Cab w/Heater & Windshield Cover & Upper Cab Guard - Removable Boom Rest - Engine Start/Stop - Combined Free Swing and Non-Free Swing Functionality - Hydraulic Rotation Drum Indicator - Electronic Throttle - 3-Section, Vane Pump-Counter Clockwise - Operator's Service/Parts Manuals - Boom Length and Angle Indicators - 5 Ton (4.5 mt) Hook and Ball - 5/8" (16mm) Dia. Rotation Resistant Wire Rope - Audible Outrigger Motion Alarm - Hyd Reservoir w/Suction Strainer & Ball Valve - Turret, Rotation Bearing & Swing System -Mechanical Houselock - New Load Moment Indicator - Full Visual/Audio Capacity Alert w/Shutoff - ROCSolid outriggers; 4 Out-And-down outriggers, 22' (6.71m) over-all spread. Features a Hand Held Radio Operated Controller and includes capacities for Intermediate 13'4"" (4.05m) and Retracted 7'2"" (2.18m) Spreads. - Remote Winch Controls included with the Hand Held Radio Controller for the outriggers - Outrigger Monitoring System -Verification Only - Front Bumper Stabilizer - for Short lower frame configurations - 2 Retractable Ladders for Easy Access to Deck - Diamond Plated Aluminum Decking - Aluminum Step Ladder - Deck mounted, multi-position Oil Cooler - Bubble Level - Signal Horn

Included Options

*155' Five Section Telescopic Boom *LMI 50155SHL *4720 Lbs. Cwt Special for SHL *39' Fixed Offsetting Jib Hard Wired ATB (QA) 50155 Boom only *Front Bumper Stabilizer INCLUDED WITH Short Sub frame 5004.055 *Standard Mount Installation *3rd Wrap Limiter Main Winch *35 ton 3-Sheave Block hook block for 1-7 Part Line *Hydraulic Tank Mount In lieu of Standard mounting O/R Top *Hot shift PTO *Air Conditioning for Cab
