Features

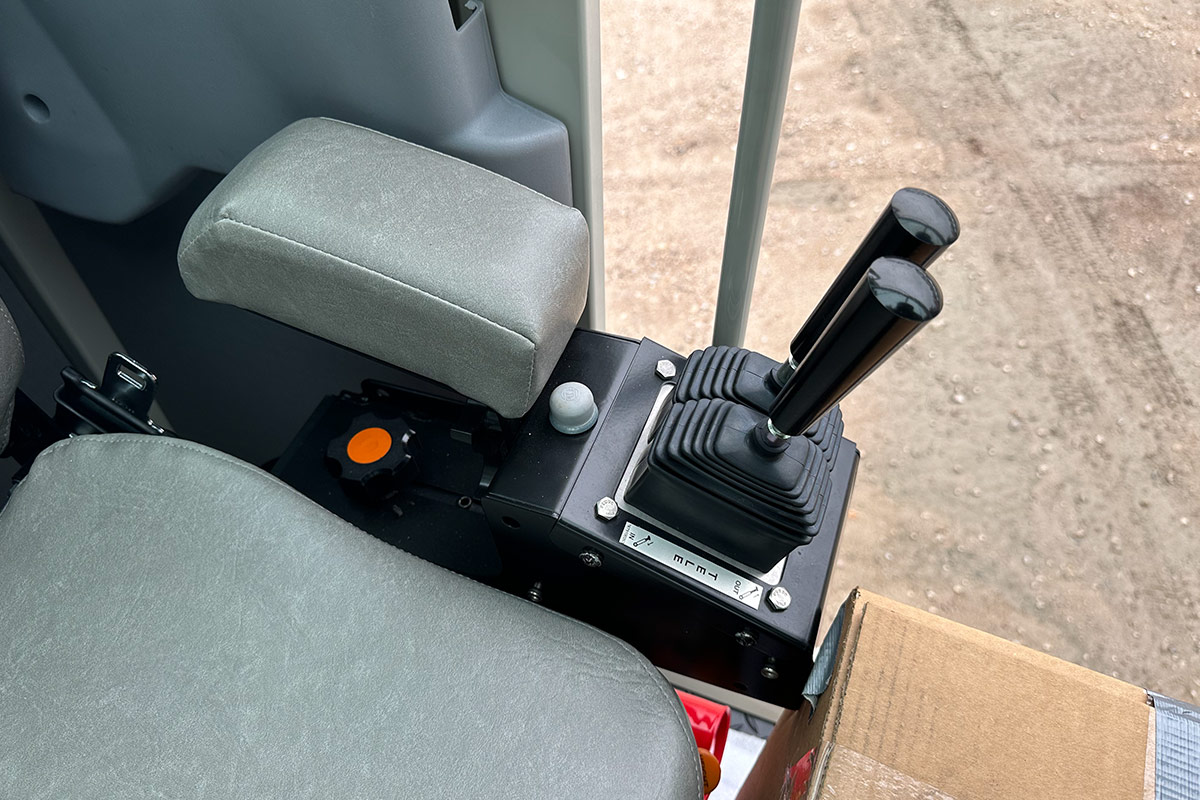

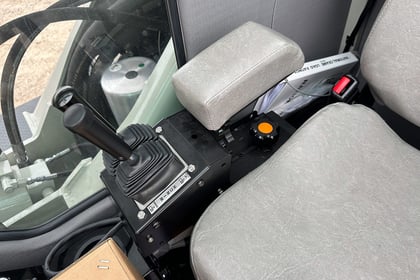

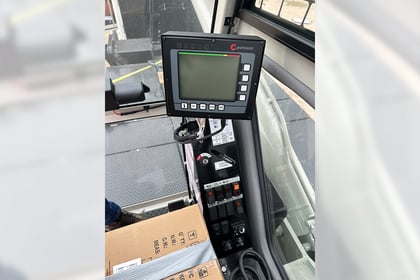

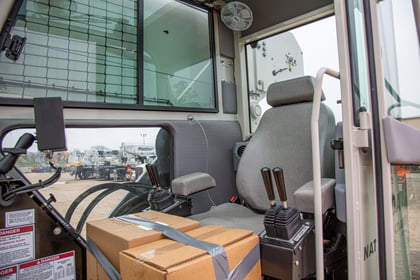

Rated Capacity Limiter System: RCL displays information on length and angle of boom, working radius, rated load and total weight being lifted. Standard Work Area Definition System (WADS) allows operator to pre-select and define safe working areas. Internal anti-two block wiring. Boom Elevation: One (1) double acting hydraulic lift cylinder with integral holding valve. (-10° to +80°) Crane Cab: Deluxe operator cab equipped with diesel cab heater, front and rooftop wipers, swinging door, fan, horn, control console with single axis joysticks in arm rests, hand/foot electronic throttle controls, engine start/stop switch, and LMI display. Swing: 360° continuous rotation with "Glide Swing" and manual foot brake in cab. Adjustable swing speed. Hydraulic System: Single, variable displacement, pressure compensated control valves, hydraulic reservoir capacity is 99 gallons (374,75 L), sight gauge, 10-micron filter on the return line, and suction line gate valve. Hydraulic oil cooler is standard. Hoist: High performance planetary two-speed winch. Bare drum pull 12,000 lbs. (5488,4 kg) low speed. Electronic drum rotation indicator (DRI), last layer indicator (LLI). Wire Rope: 375 ft (99,1 m) of 5/8" (16 mm) rotation resistant wire rope (5:1 safety factor). Single line pull 9,000 lbs. (4082,3 kg) low speed. Headache Ball: Round downhaul weight with top swivel, 5-ton (4,5 mt) capacity rating. Outriggers: Two sets of out & down cross frame outriggers with a 24.7' (7,5 m) span which can be positioned at mid span 17' (5,2 m) with manual locks. Outriggers are provided with 20" (508 mm) dia. polymeric removable pads. Stabilizers: Single front outrigger (SFO) located in the center of the front bumper. Includes "first up" feature. Torsion Box/Decking: Torsion resisting subbase with rotating turret. Steel full length tread plate decking, provides 8' (2,4 m) bed space between outriggers and front of turret; side and rear access ladders to turret control and rear bumper. Miscellaneous Standard Equipment: Back up alarm, hour meter in truck cab, outrigger motion alarm, parallel boom rest, rear bumper underride protection, electronic engine throttle (EET), two (2) English owner's manuals (1 paper & 1 USB flash drive) and outrigger monitoring system. PTO and mounting charges not included in standard price. Standard Paint: Valspar Duraspar® 2K Epoxy Primer and Valspar Duraspar® Ultra 2K Urethane paint -""National Platinum"" color for frame, turret and base boom section; standard ""Black"" for hydraulic reservoir, SFO, torsion box (frame), inner outriggers, and inner boom sections.

Included options

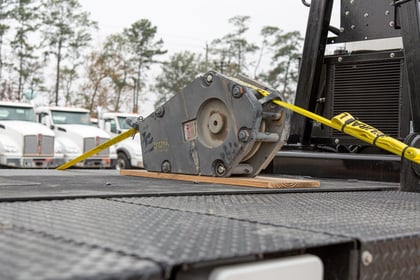

31.6' -127' (9,6 -38,7 m) five section, full power telescopic boom 30' (9,1 m) fixed boom extension (side fold for stowing) Two-and three-part reeving, 15-ton (13,6 mt) capacity hook block with one sheave. Standard Mounting Counter Clockwise rotation pump Air conditioning for crane cab. Self-contained modular unit. Additional outrigger controls located at operator's seat
