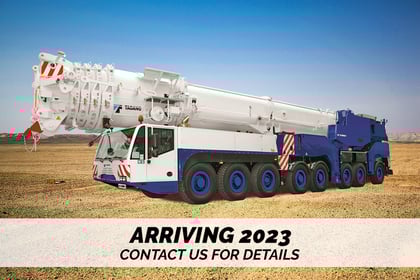

Features

Engine 460-5; EU Stage V / Tier 4F Mercedes-Benz OM473; Diesel engine; 460 kW/ 1600 1/min (617 HP), torque 3000 Nm / 1300 1/min; The engine complies with EU Stage V / Tier 4F; Exhaust system cpl. stainless steel with DPF and SCR system Fuel tank Fuel tank 880l Diesel (no RME/ Bio-Diesel) Transmission ZF TraXon Torque ZF TraXon Torque; Automated gearbox with torque converter and integrated hydraulic retarder brake, 12 forward speeds and 2 reverse; Selectable longitudinal lock included in transfer case Axles 16x8x14 16x8x14; 8 axles, axles 1,2,4,5 driven and equipped with selectable transverse lock; Axles 1-4 and 6-8 steered; Axle 5 lift able Suspension Hydro pneumatic suspension with axle load compensation; hydraulically lockable; Manual or automatic leveling alternatively Steering Dual circuit hydro semi block steering with emergency steering pump Brakes Pneumatic dual circuit service brake, acting on all wheels; Disc brakes; Hydraulic retarder integrated into transmission as wear less, sustained-action brake; Additional exhaust brake and constant throttle valve; spring-loaded parking brake Wheels 385/95 R25 (14.00R25) Wheels 385/95R25 (14.00R25); Steel rim 9,5-25/1,7"; TechKing ETCRANE 170F or similar Pneumatic tire filling plug Pneumatic tire filling plug for self-filling of the wheels Wheel nut indication Wheel nut caps with arrow enable optical check of wheel nut position Cab Carrier Type 2,88m; Adjustable driver seat with seat heating, armrests and pneumatic suspension; Co-driver's seat; Steering wheel height and tilt adjustable; Power door windows; Tinted glass; Radio- preparation Heating carrier Engine-dependent warm water heating with 12kW heating power Radio carrier Digital radio with USB input, Aux-In and Bluetooth® connection Air-condition carrier Air-condition for carrier cab with 7KW cooling power Tachograph Speed indication; Tracking according to country-specific regulations Cruise control Automatic speed control including automatic brake control Fire extinguisher With holder in carrier cabin Rear view camera Optical display in carrier cab Electronic immobilizer system Prevents uncontrolled carrier mobilization; Incl. 2 electronic keys and 4 ignition keys Battery disconnecting switch Battery disconnecting switch for disconnection of the voltage source and the on-board power supply in carrier and superstructure Drive lights With low beam, upper beam, daytime running lights Illumination 1x outriggers left, 1x outriggers right Rotary beacons 2x Disconnectable on carrier cab Central lubrication carrier Central auto lube for all lubrication points at carrier Outriggers X-4-Point design; 4 outriggers telescopic; Vertical and horizontal movement fully hydraulic; Manual and automatic leveling; 2 outrigger bases of 7,30m and 9,60m Outrigger quick connection X Hydraulic bolt extractors and hydraulic & electric quick couplings for fast (dis-) assembly Outrigger pads PA 4 outrigger pads Polyamide, with transport position at outrigger beam Outrigger basis monitoring Surveillance of each outrigger beam for visual comparison with the programmed outrigger basis; Displayed in LMI Superstructure cab and outrigger control display (Attention: There is no automatic linkage with the LMI-system) Outrigger load indicator The outrigger load is indicated in the operator cab and the outrigger control box Heavy-duty batteries HD-batteries for optimal battery performance even under HD usage; carrier batteries are suitable for cold start Jump starting device Jump starting device for carrier and Superstructure according to NATO-standard; Enabling jump start by using 2nd engine or separate energy source Jumper cable NATO-NATO 10m 10m long jumper cable with both-sided NATO-plug, adequate for use with any jump starting device with NATO-plugs Emergency override HY Interface for hydraulic emergency operation to recover loads in case of engine failure; Driven e.g. via optional Power Pack 50kW Contour safety marking Continuous reflecting bands at carrier sides and tail Emergency roadside kit Emergency roadside kit for crane operation and for public road access of trucks according to StVZO Toolkit Toolkit for light repairs and service Stepladder Loose stepladder for misc. assembly work; Incl. transport storage Painting TADANO-BlueWhite Single basecoat, topcoat in TADANO-BlueWhite, chevron warnings in red-white Standard acceptance Standard acceptance test for carrier Superstructure Telescopic boom HA56 14,7m -56m; Single cylinder telescoping system, automatic telescoping; Attachments for all equipment and extensions; 8 sheaves integrated in boom head for max. capacity of 187,9t Boom luffing 2 luffing cylinders with automatic lowering brake valve Rotary drive 1 slewing gear unit with spring-loaded multi-disc brake H1 Hoist with spring-loaded multi-disc brake; Resolver (hoist rotation indicator) Rope twist prevention H1 Rope twist prevention for rope diameter d=24mm; Avoids rope twist hoist 1 Counterweight base frame 20t Counterweight base frame 20t; Self rigging with semiautomatic rigging system, rigging storage on carrier front; Expandable to max. 180t Engine 210-5; EU Stage V / Tier 4F Mercedes-Benz OM936; Diesel engine; 210kW / 1800 1/min (281HP), torque 1200Nm / 1200-1600 1/min; The engine complies with EU Stage V / Tier 4F; Exhaust system cpl. stainless steel with DPF and SCR system Fuel tank Fuel tank 348l Diesel (no RME/ Bio-Diesel) Preparation for SSL Preparations on main boom and hydraulic system of the basic machine for later sideways superlift (SSL) retrofit; Without programming and acceptance Control system Enabling 4 simultaneous working movements; electric pilot controls via 2 two-axis joysticks Operator aids IC-1, with integrated load moment indicator acc. EN13000; Color display; Displaying of current operating conditions, load charts, fault indicator; Signal lights indicating LMI-load; Crane data logger IC-1 Plus (Asymmetric Outrigger Positioning) Calculation of lifting capacity subject to outrigger base and slewing angle of superstructure; Incl. Automatic counterweight detection; I. A. makes it possible to work with asymmetrically extended outriggers. Note: for HA operation only Working range limiter Displaying and programmability of the work range limits by IC-1 Hook height indication Displaying and programmability of the hook height by IC-1 Hoist monitoring H1 Visualization H1 by camera system; Displayed on additional screen for the hoist monitoring in superstructure cabin Cab superstructure Type 1,1m; Tilt infinitely variable 20°; Seat heating; Sliding window in door and rear; Fold -out front window; Side and front platform; 2 foldable ascension ladders; Handrails; Tinted safety glass; pull- down sun visor and light curtains; Radio-preparation Engine-independent heating superstructure Engine independent warm water heating with 5kW heating power; With timer and remote start Air-condition superstructure Air-condition in Superstructure cab with 7KW cooling power Radio superstructure Digital Radio with USB input, Aux-In and Bluetooth® connection Anemometer Disconnectable, to allow use with all extensions Positioning light Disconnectable red beacon, to allow use with all extensions Double work floodlight Two adjustable floodlights, mounted at front of boom base section; instead of 'single work floodlight' Illumination 1x work prefield at superstructure cab, 1x backwards on superstructure cab Rotary beacons 2x Disconnectable on Superstructure tail Central lubrication superstructure Central auto lube for all lubrication points at Superstructure Painting TADANO-BlueWhite Single basecoat, topcoat in TADANO-BlueWhite, chevron warnings in red-white Standard acceptance Standard acceptance test for superstructure Documentation Documentation includes 1x operating instructions digital and 1x printed, 1x lubrication and maintenance instructions digital and 1x printed, 1x spare parts catalogue digital, 1x load charts digital; Digital files delivered on USB stick

Included options

845-540-52 WIHI-A 90m 90m; Luffing Jib; Complete building set with increments 6m; With integrated manual offset section 20°/40°; 5-sheave und 3-sheave head; Enables configuration WIHI 24m -90m, LF 8,4m -62m and HAV 6m -30m; Attention: H2 required for luffing jib operation 845-690-12 R1 (Swing away rooster sheave) Swing-away rooster sheave; Incl. transport storage at boom he ad HA56; Enables operation of a second hook 847-303-22 Hook block 320-11-24-D-3200 320-11-24-D (3200kg); Hook block with ramshorn hook;white with red signal stripes; Note: 'Heavy lift attachment'required for maximum reeving (max. 22 parts of line) 847-301-62 Hook block 200-7-24-D 200-7-24-D; Hook block with ramshorn hook; white withred signal stripes 847-300-12 Hook block 100-3-24-D 100-3-24-D; Hook block with ramshorn hook; white withred signal stripes 847-301-82 Hook block 40-1-24-E 40-1-24-E; Hook block with single hook; white with redsignal stripes 847-300-92 Hook 12-0V-E 12-0V-E; single hook with vertical swivel; red 847-320-22 Heavy lift attachment 3 additional sheaves = 11 sheaves integrated in boom head enable max. capacity of 250,9t; Optional heavy lift attachment kit to prevent rope wear/damage at steep main boom configurations with retracted 4. inner section (IK 4 = 0%) available on request 843-030-12 Quick connection carrier-superstructure Disconnectable bearing with hydraulic central locking; Incl. active luffing cylinder steering; Incl. switchable suspension calibration for light travel configurations; Attention: Machine height 4,2m with superstructure attached 845-080-12 Boom assembly by trailer Slide rail and active luffing cylinder steering; Enables boom (dis-) assembly with special trailer and without assist crane or with standard trailer and assist crane; Note: No Homologated driving configuration (Without Paragraph 70); Trailer is not included; Note: If 'Heavy lift attachment' is selected, 'Heavy lift attachment' will be delivered with separate heavy lift axis 847-000-32 Counterweight AC-Cast 160t AC-cast-counterweight 16 x 10t => 160t (From AC350 till AC1000-9) 843-050-22 2nd Hoist (H2) 2nd Hoist together with fly-jib fixed bridle as requirement for WIHI; H2 is Spring-loaded multi-disc brake; Resolver (hoist rotation indicator); Incl. quick couplings; incl. luffing beam with hyd. connections which are required for luffing jib retrofit; Incl. rope twist prevention and Hoist monitoring; Note: Required for luffing jib operation (WIHI) 845-660-12 SSL (Sideways Superlift) Sideways Superlift; Capacity increasing boom guy support 843-290-12 HR (Hydraulic reeving winch ) Hydraulic winch for reeving assistance; Only together with H2 843-130-12 Side mirror Mirror enabling visual observation of the superstructure cab's opposite side 842-370-12 Display Datalogger Display Datalogger; Data recorded by datalogger displayed on the display in the superstructure cabin 843-270-52 Fall-from-height protection system boom base section +SSL Fall-from-height protection for manual operations on the main boom base section and SSL 843-270-62 Fall-from-height protection WIHI Fall-from-height protection for manual operations on the luffing jib 843-270-12 Fall-from-height protection Counterweight base plate Fall-from-height protection for manual operations with mast on the counterweight base plate Note: Required for Netherlands 843-270-22 Working platform counterweight Working platform on counterweight frame 843-200-12 Emergency lowering system HY Hydraulic interface on crane in accordance with BG (German employers’ liability insurance association requirements) in case of engine failure; Makes it possible luffing, hoisting and slewing (no movements which increases the loadmoment); 'Emergency lowering System transformer' not included; Optional emergency lowering System transformer required if not available; Can be worked via carrier engine or assist crane with hydraulic interface; Note: Incl. Donor Interface 843-200-22 Emergency override E Electrical emergency control unit via cable; Enabling to continue crane operation in case of electrical control system failure
