Product video

Features

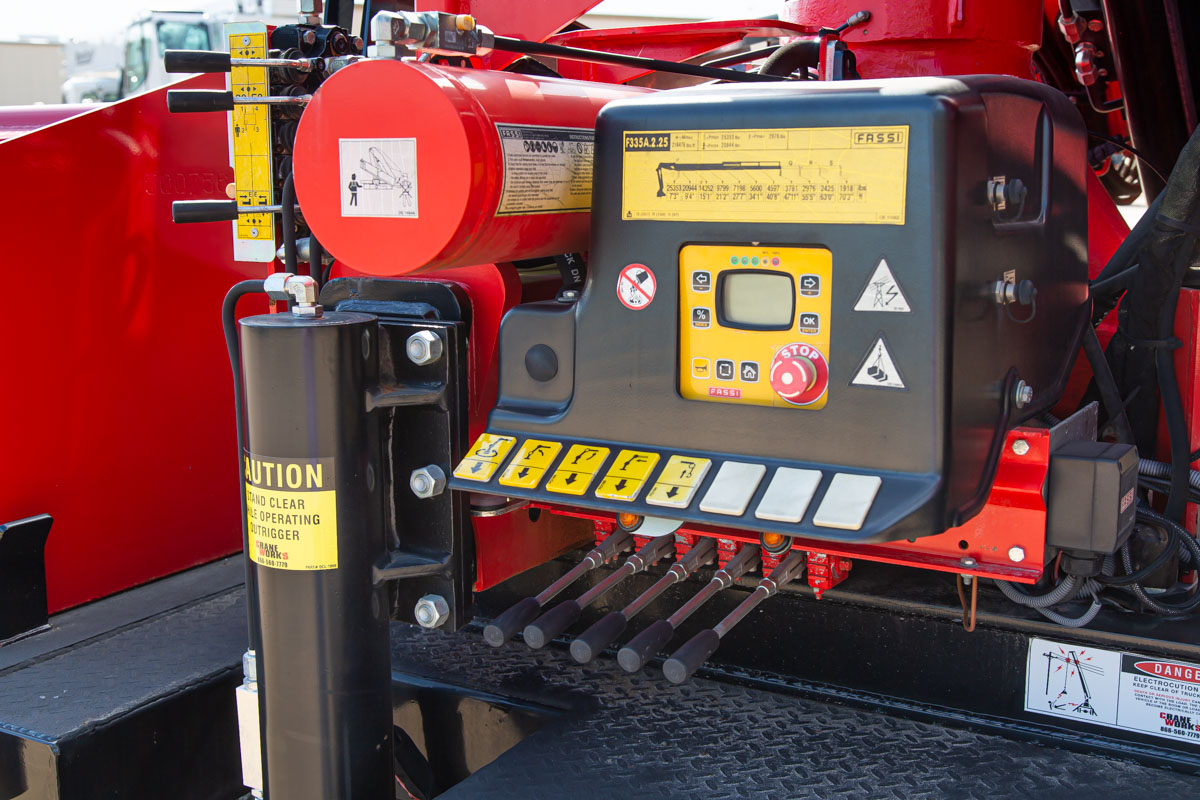

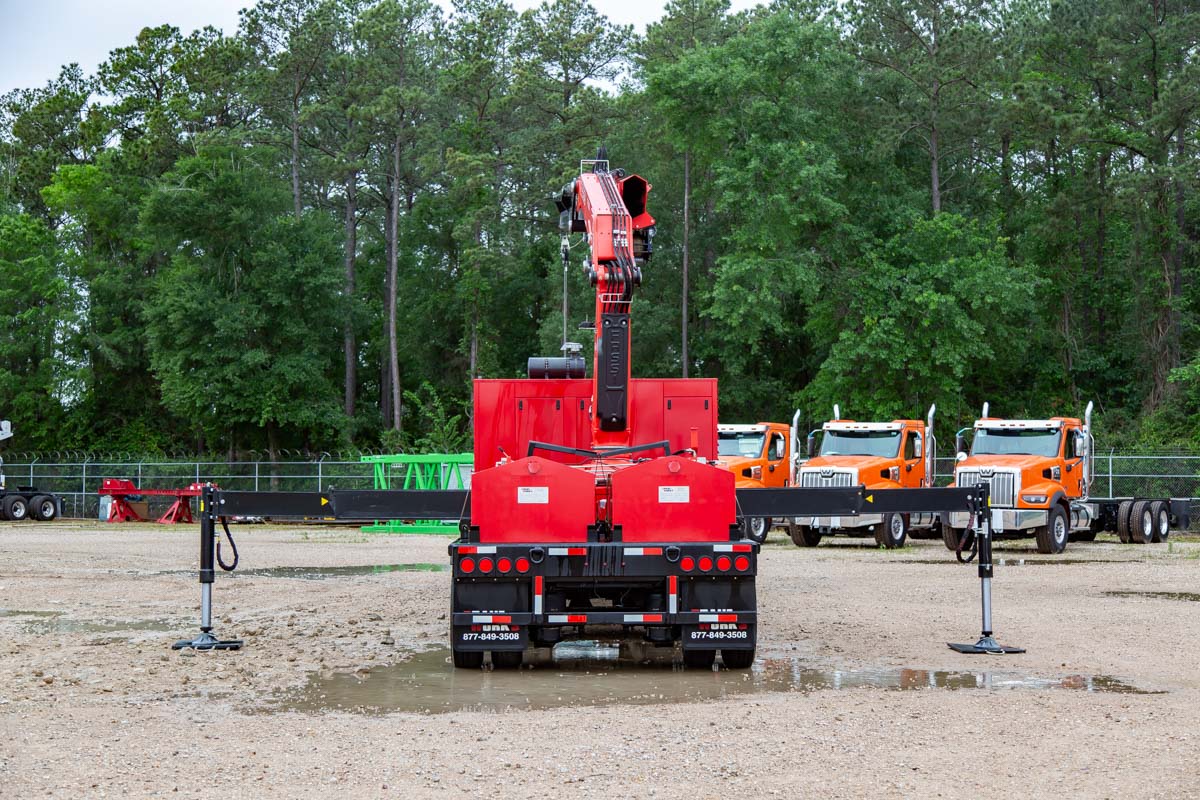

Technical Specifications: LIFTING CAPACITY up to 229286 lbs. ft MAX OUTREACH 47’10” main boom OVERALL DIMENSIONS 3’10” ft , w 8’3”ft , h 8’0”ft ELECTRONIC/HYDRAULIC EQUIPMENT FX800 control unit D850 digital distributor bank RCH/RCS radio remote control unit ADC automatic dynamic control Flow sharing CHARACTERISTICS Dynamic version (.2): with linkage Prolink system with double linkage ROTATION Rack rotation with self-centering cast iron wear pad: it ensures the correct and constant coupling between the pinion and the rack, avoiding the wear and tear of the teeth. Features BASE -Base with slots for tie rod fastening or for integrated counter frame allowing limitation of fitting height. BOOMS GUIDE -Extension booms guide shoes, with “forced” assembly to reduce vertical and horizontal clearance, ensuring greater durability. Special guide shoes material with high sliding degree and low greasing request. OUTRIGGER -Hydraulically extendable outriggers also in “Extra wide” execution, with hoses tted inside the stabilizer supports (standard only on dynamic crane version). Independent hydraulic distributor for the control of the outriggers; it can be also activated by radio control (option). Available as option manual or hydraulic tilt able outriggers. LIFTING CAPACITY: up to 229286 lbs. ft

Included options

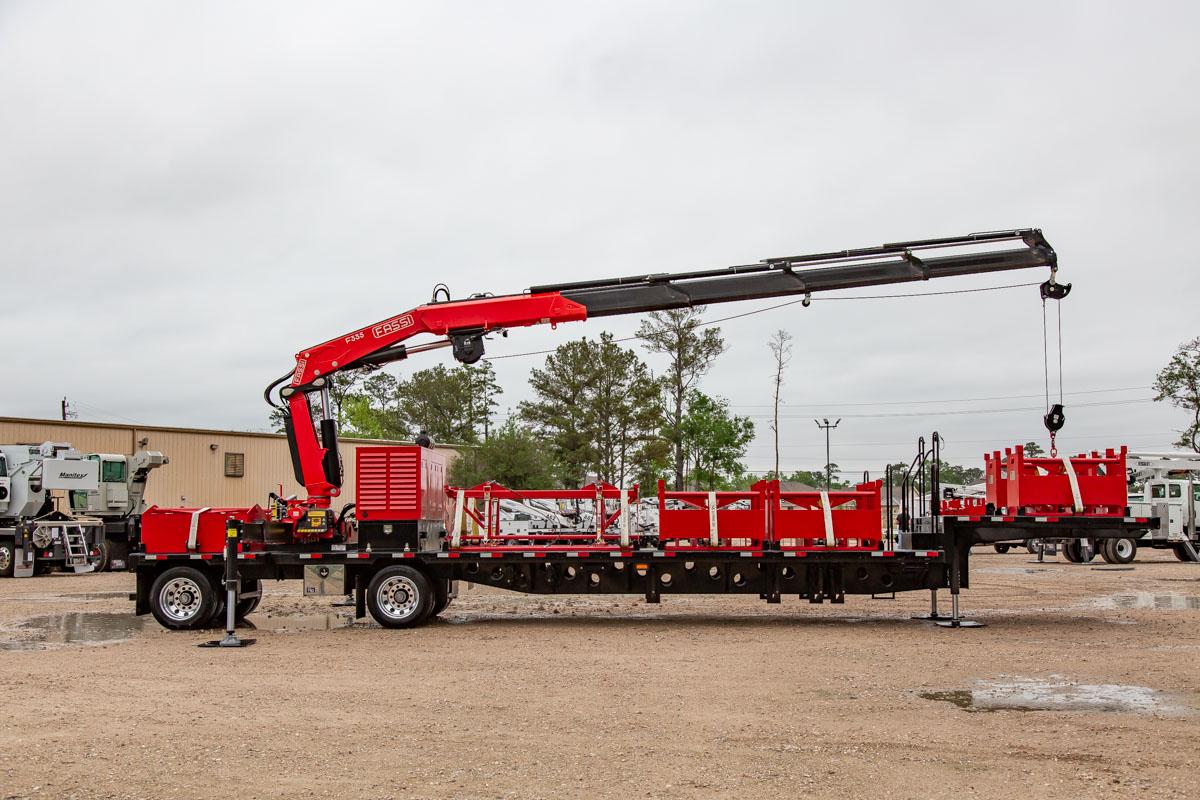

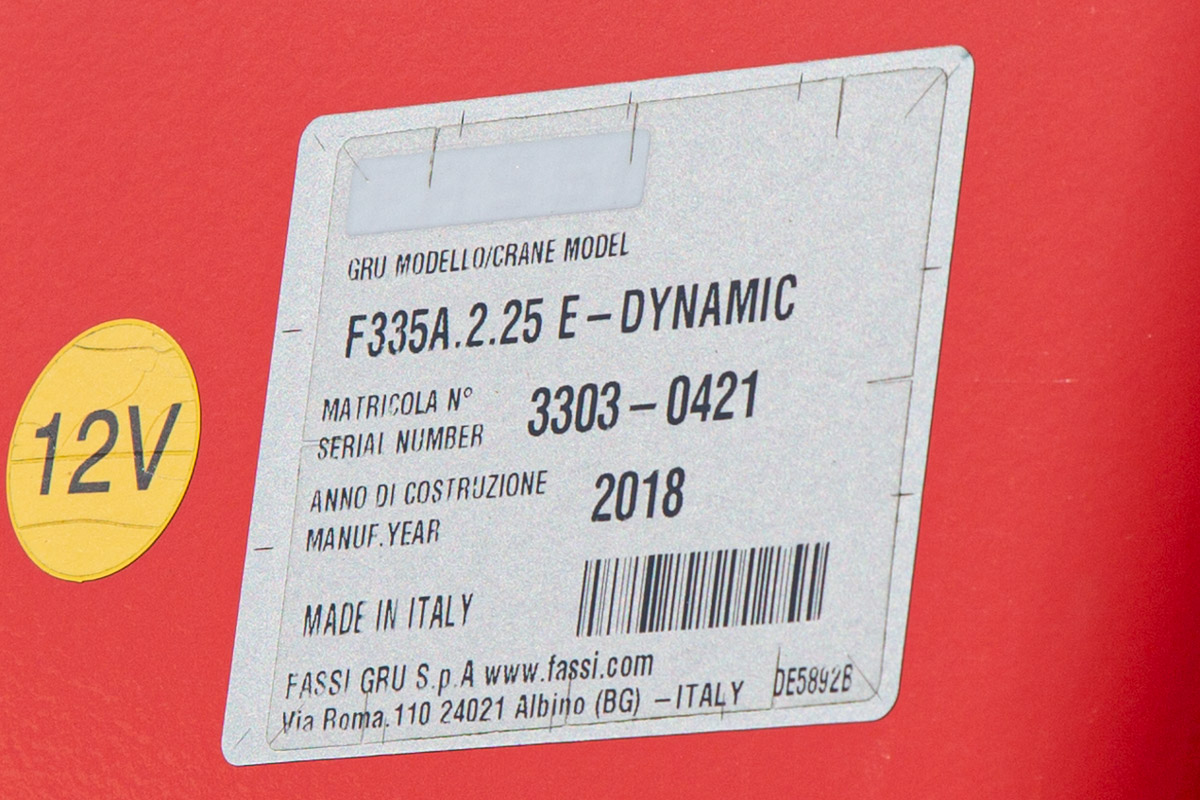

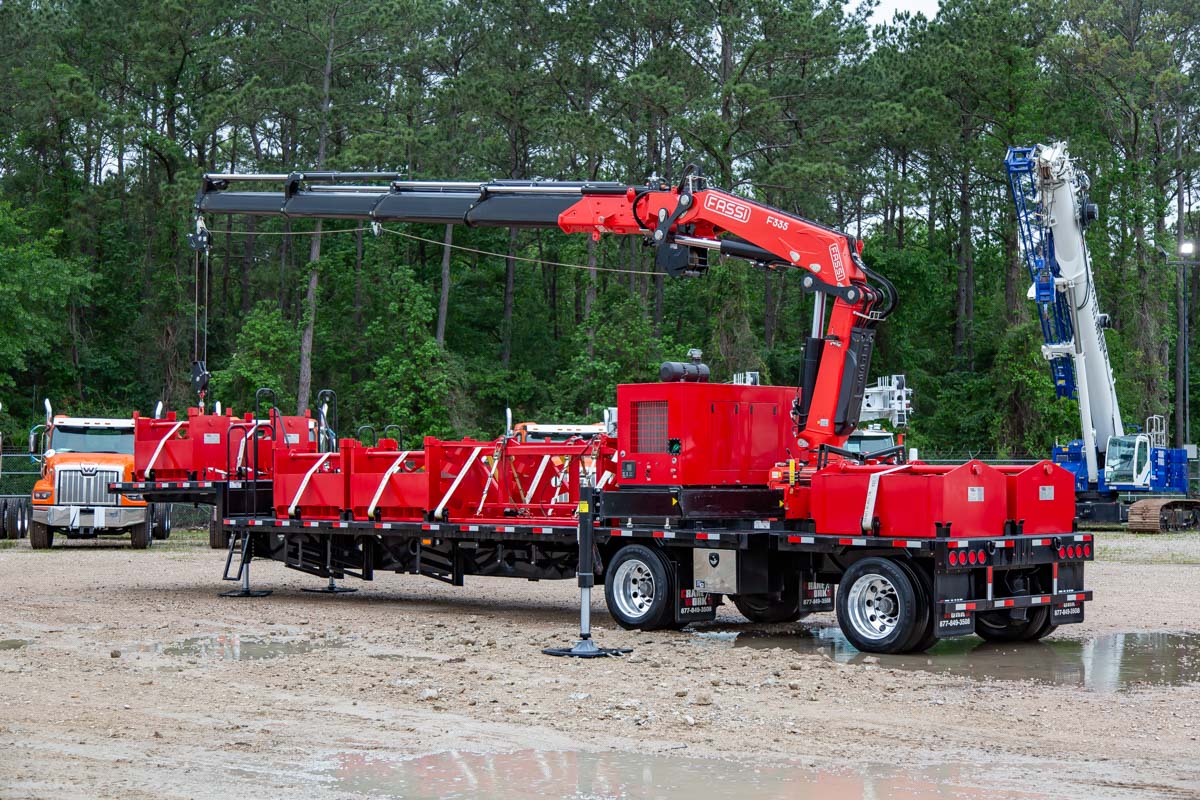

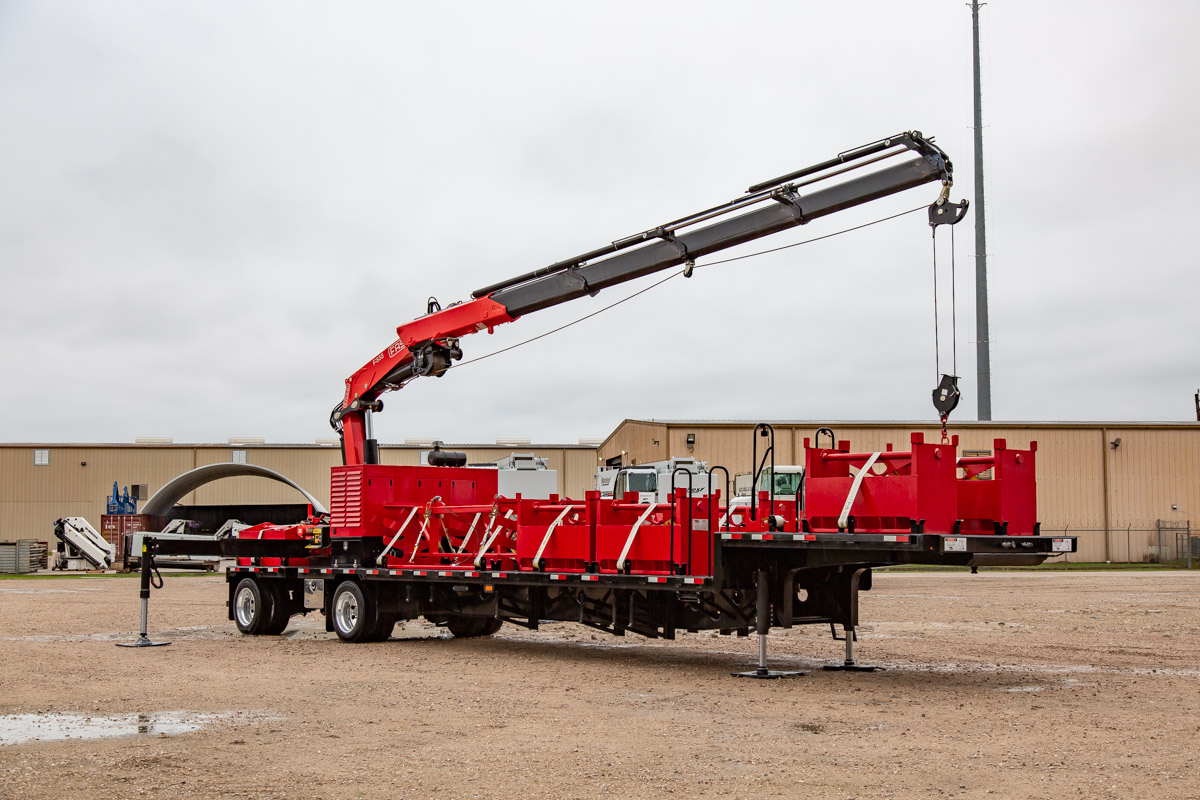

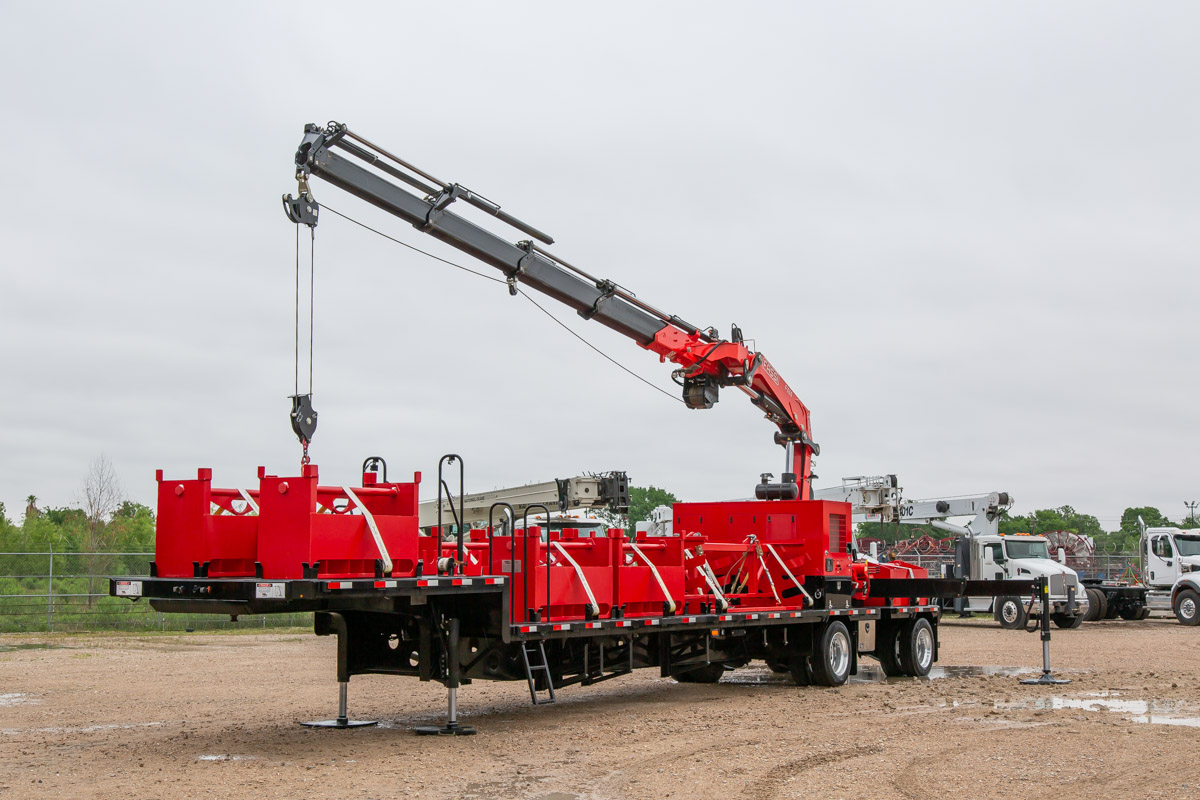

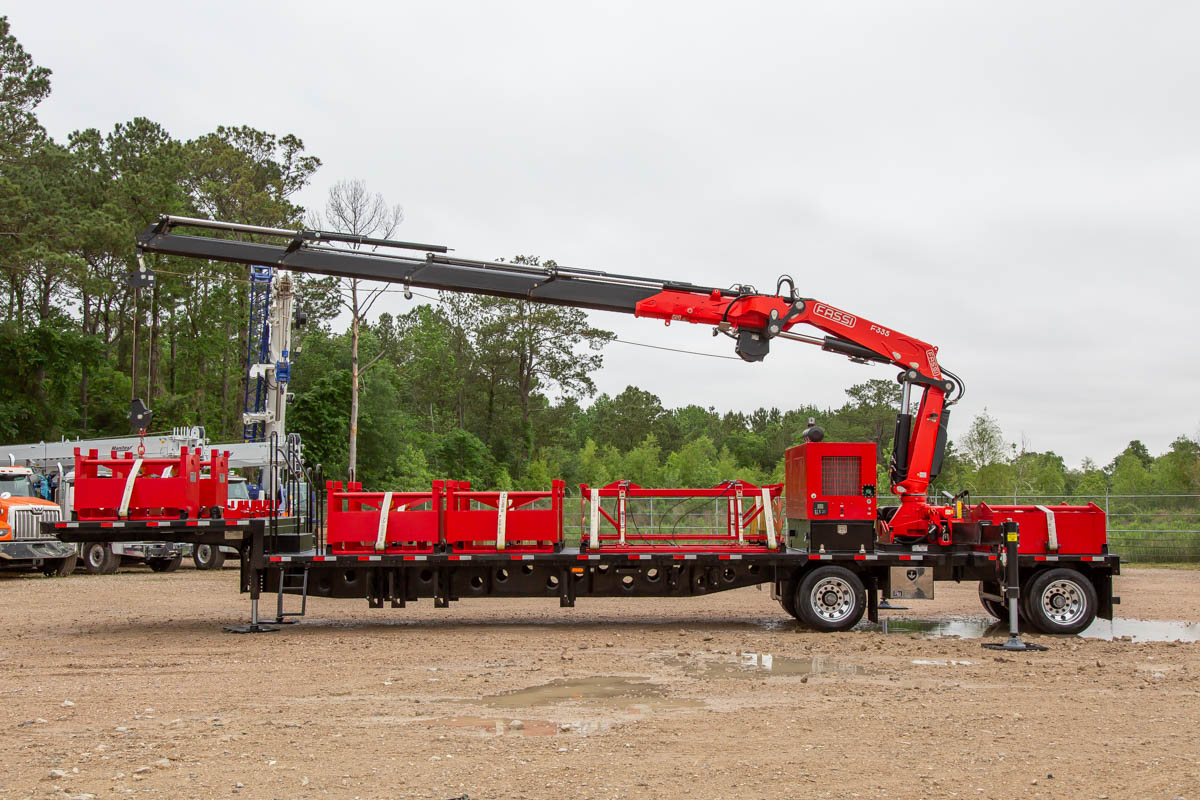

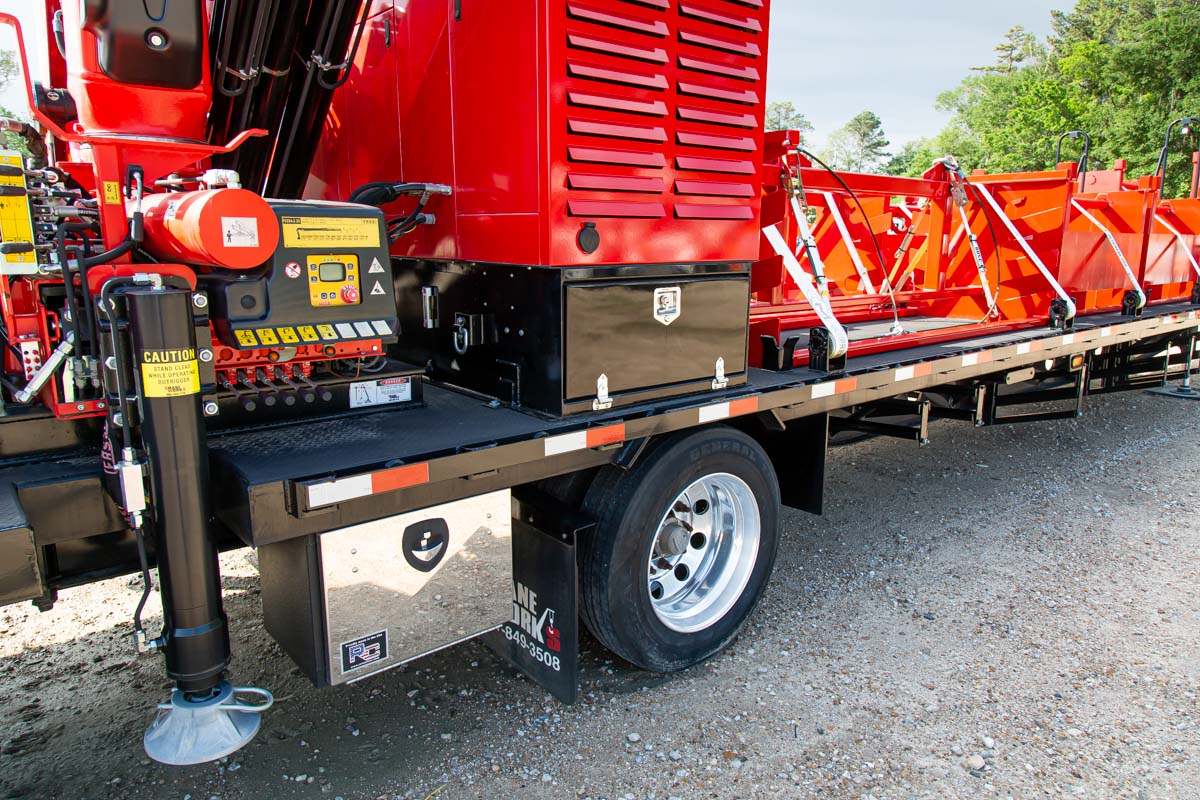

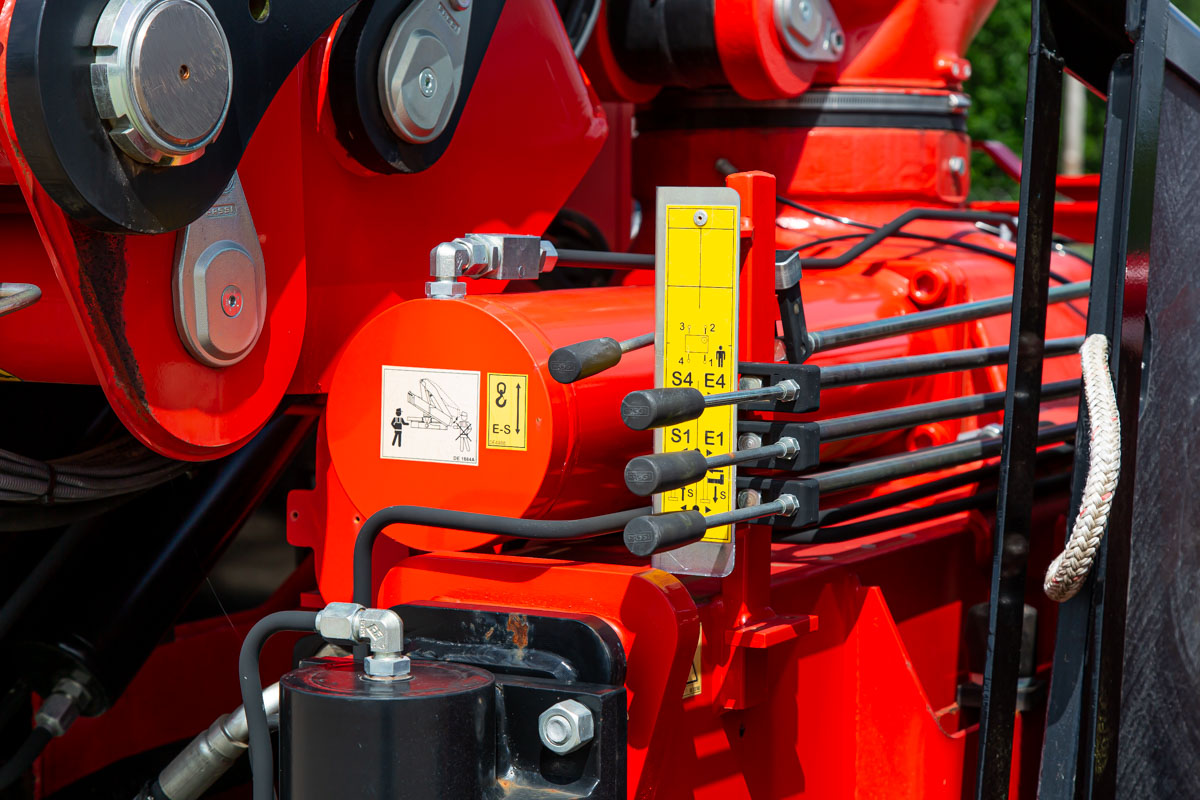

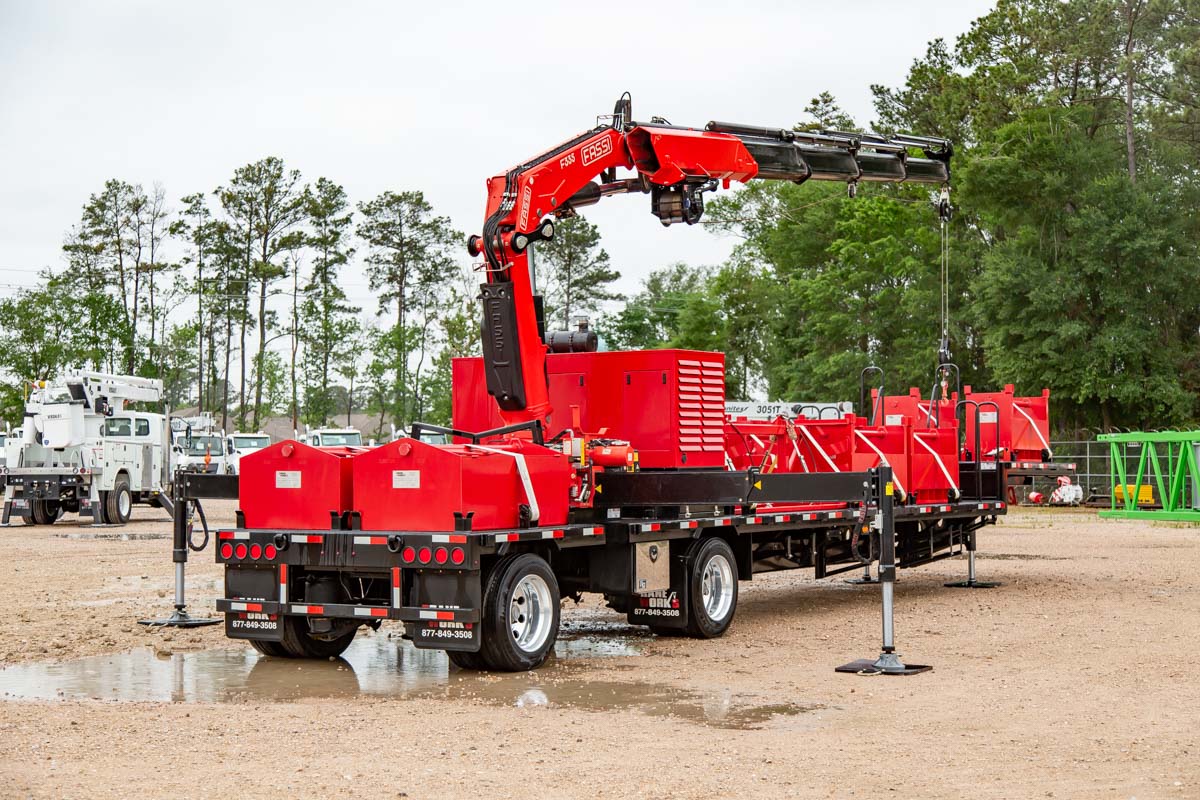

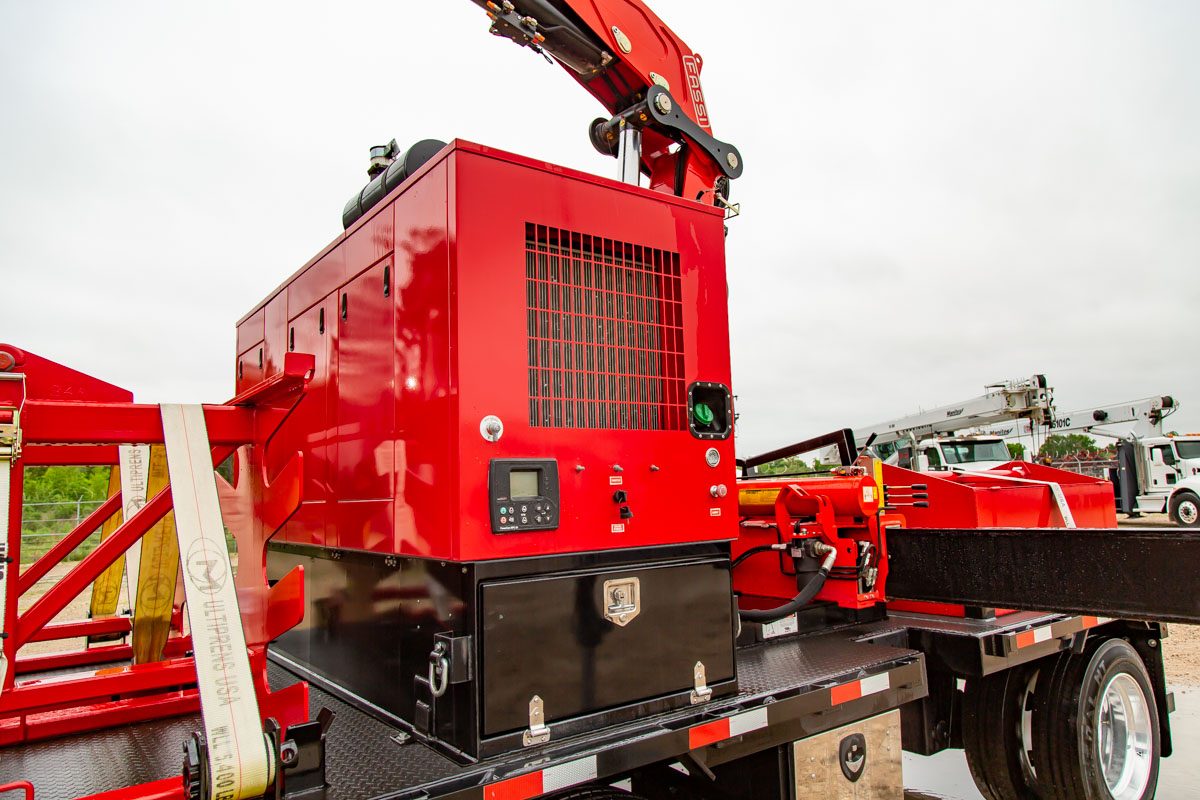

• Fassi F335A.2.25 e-dynamic Knuckle Boom Crane • Lever Control Sequence • Extra Wide ,Hydraulic Extendable Outriggers • V20, Hydraulic Winch • Predisposition of Distributor • Double Fall for "V20", "V30" • Supplementary Distributor Function • Long Fixing Bolts • Work Lights Activated by RCH, RCS, or GV • 2 X LED Outer Boom Work Lights • Outrigger Rod Extension (6") • Rotating Electrical Distributor-9 Rings • Standard Part Items for F335A Model • Decal Crane Kit Fascan Supplied • Mounting Blocks for F140-F330 & F250/280 • 12M/JIC X 12M/BSPP Fittings (See N1947) Perkins Power pack with Hydraulic Tank and Pump Oil Field Racks
