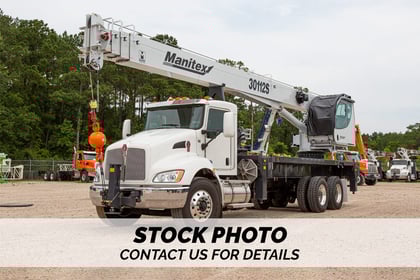

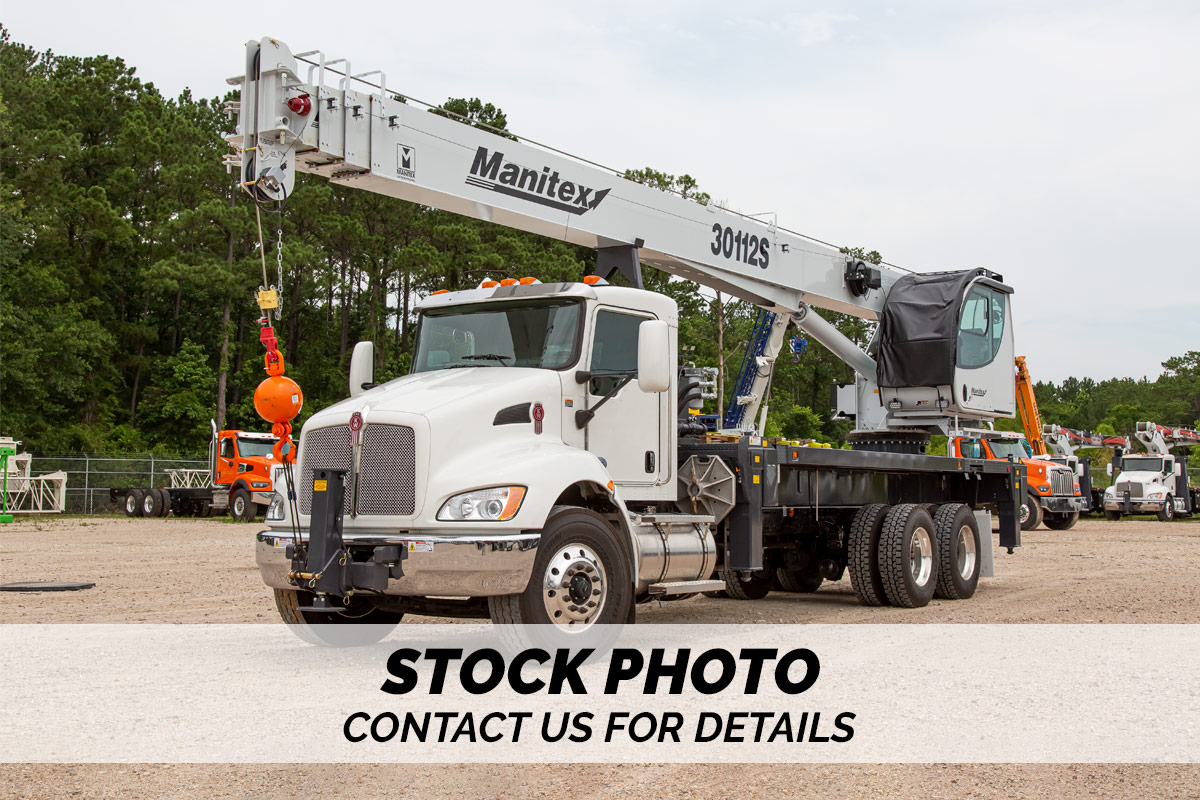

New Manitex 30112S on New Western Star 47X

Features

30 Ton (27,2 mton) Capacity 4-Section 112’ (34,1 m) Proportional Boom 2-Section 26’ (7,9 m) to 46’ (14,0 m) Telescopic Jib 168’ (51,3 m) Maximum Tip Height with Telescopic Jib 122’ (37,2 m) Maximum Main Boom Tip Height Self-Lubricating Boom Slider Pads Two Speed Planetary Grooved Drum Hoist With Negative Draft Flange Ride Around Operator Control Station with ACCUSwing Swing Speed Adjustment Pilot Operated Crane Controls Fully Enclosed Cab Option Diesel Heater and Air Conditioner Options Continuous Rotation 360° Work Area ROCSolid Outriggers feature Radio Remote Outrigger Controls, Audible Outrigger Motion Alarm Retracted, Intermediate And Fully Extended Outrigger Load Charts Load Moment Indicator with Digital Display, CANBus system interface, Overload Shutdown and Internal Boom Length Cable Radio ATB Rugged, Weatherproof Electrical System with Circuit Status LEDs Removable Boom Rest Clamp-On Mounting Hydraulic Oil Cooler ORS Face Seal Hydraulic Fittings and Adapters Manitex UPTime Comprehensive Support Specs BOOM Booms – Inverted T-cross section, 4-section telescoping type, extended and retracted proportionally by a double-acting hydraulic cylinder and cable-crowd system. Easily replaceable; adjustable high-density nylon self lubricating slide pads. 30112 – 4-Section 33’ 3” (10,1 m) to 112’ (34,1 m). 2-Section 26’ (7,9 m) to 46’ (14,0 m) jib. Quick Reeve Boom Point – Five high-density nylon load sheaves mounted on heavy-duty roller bearings. Removable pin-type rope guards. Boom Elevation – Double-acting hydraulic cylinder. Working range from 10° below horizontal to 81° above. Load Hook – 5-ton (4,5 mton) capacity hook with heavy-duty swivel and weight is provided for single-line operation. HOIST Planetary reducer with wet multi-disc spring applied, hydraulically released internal brake and grooved drum; negative draft angle on drum flange to minimize line stacking while spooling. High efficiency two speed hydraulic motor equipped with patented brake valve for precise lowering. Maximum theoretical line speed 300 fpm (91,4 mpm); maximum theoretical bottom-layer line pull 11,500 lb (5 227 kg). Wire Rope – 335’ (102,1 m) of 9/16” (14,3 mm) diameter 6 X 19 EIPS IWRC. SWING SYSTEM Continuous rotation is standard. Externally mounted, double-reduction planetary driven by hydraulic motor. Manitex ACCUSwing control allows operator to adjust crane swing speed up to a maximum of 1.5 rpm. Spring applied hydraulically released parking brake. Ball-bearing swing circle with external gear. OUTRIGGERS ROCSolid out-and-down style outriggers, operated independently for precise leveling featuring a radio remote controller for ease of set-up. Fully extended, intermediate extension and fully retracted outrigger beam positions. Bubble levels located in operator cab and near outrigger manual controls. Maximum outrigger spread 19’ 8” (6 m), Intermediate outrigger spread 13’ 6” (4,1 m), 16” (406 mm) diameter floats. MOUNTING Lower frame is mounted to chassis by threaded rods and clamp plates. No welding, drilling, or bolting to truck frame is required. Rear Underride Protection – Supplied on factory mounted cranes; fabricated structure mounted under rear of carrier. Underride design complies with Bureau of Motor Carrier Safety Standard 393.86. Lower Frame – Torsion resistant, rigid 4-plate design with integrated outrigger and pedestal. Boom Rest – Heavy-duty fabrication. Easily removed to simplify loading and unloading truck deck. CONTROL SYSTEM Single operator platform and seat mounted to turret. Four “pilot operated” single-axis crane controls provide precise metering and multifunction capability; arranged in accordance with ANSI B30.5 standards. The operator station includes bubble level, system pressure gauge, engine start/stop, air foot throttle, signal horn, load moment indicator console, boom-angle indicator, load chart and range diagram. HYDRAULICS Hydraulic System – A 3-section vane pump direct mounted to power take-off on truck transmission provides 32 gpm (123 lpm) to the hoist, 21 gpm (78 lpm) to the boom hoist and telescope circuit, and 10 gpm (38 lpm) to the swing and outrigger circuit. 70-gallon (265-liter) baffled reservoir with strainer and 25-micron filter in the return lines. Ball-type shutoff valve and strainer are provided in suction line. All fittings are ORS type and SAE. Hydraulic Cylinders – All load-holding cylinders are equipped with integral holding valves.
