Features

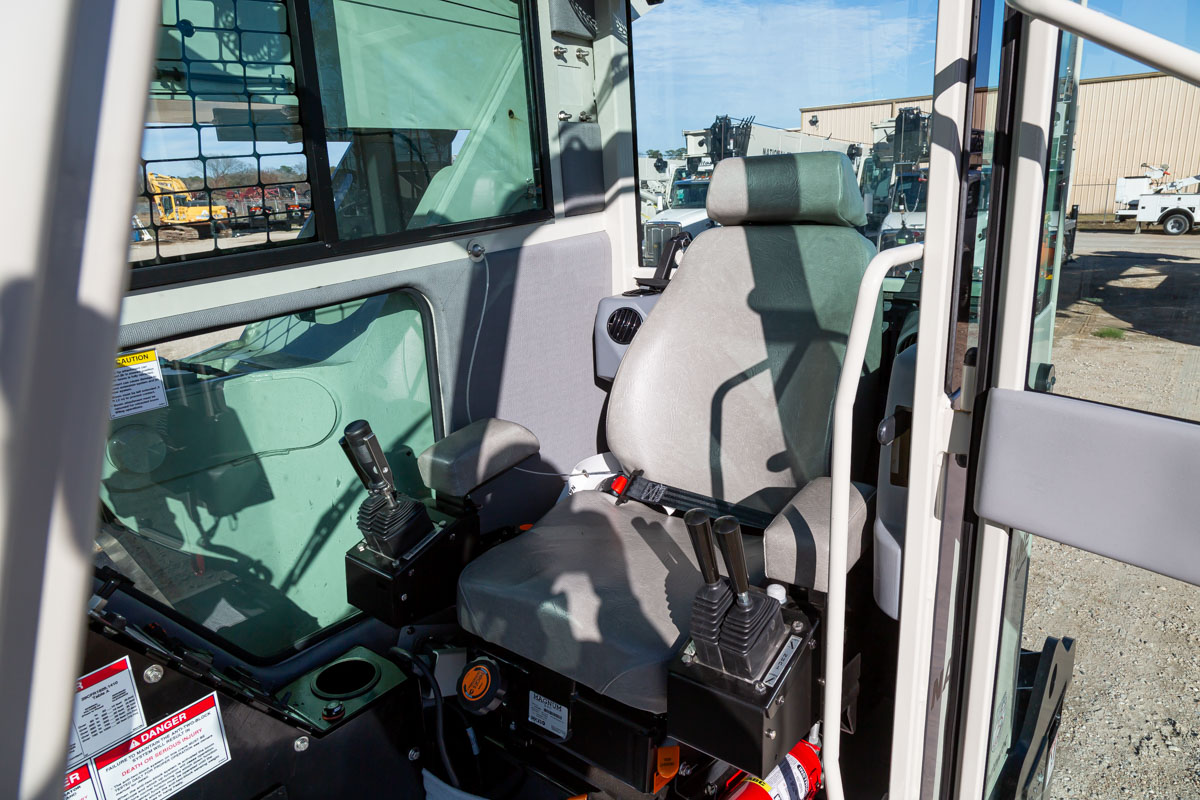

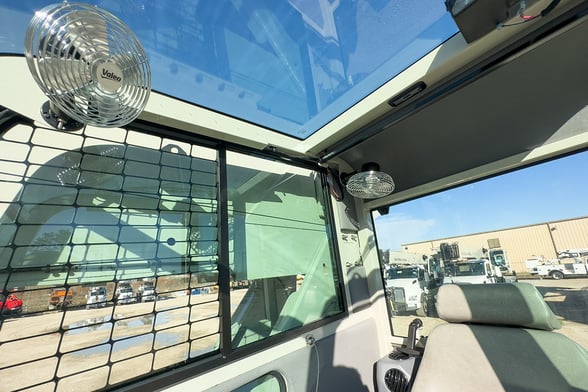

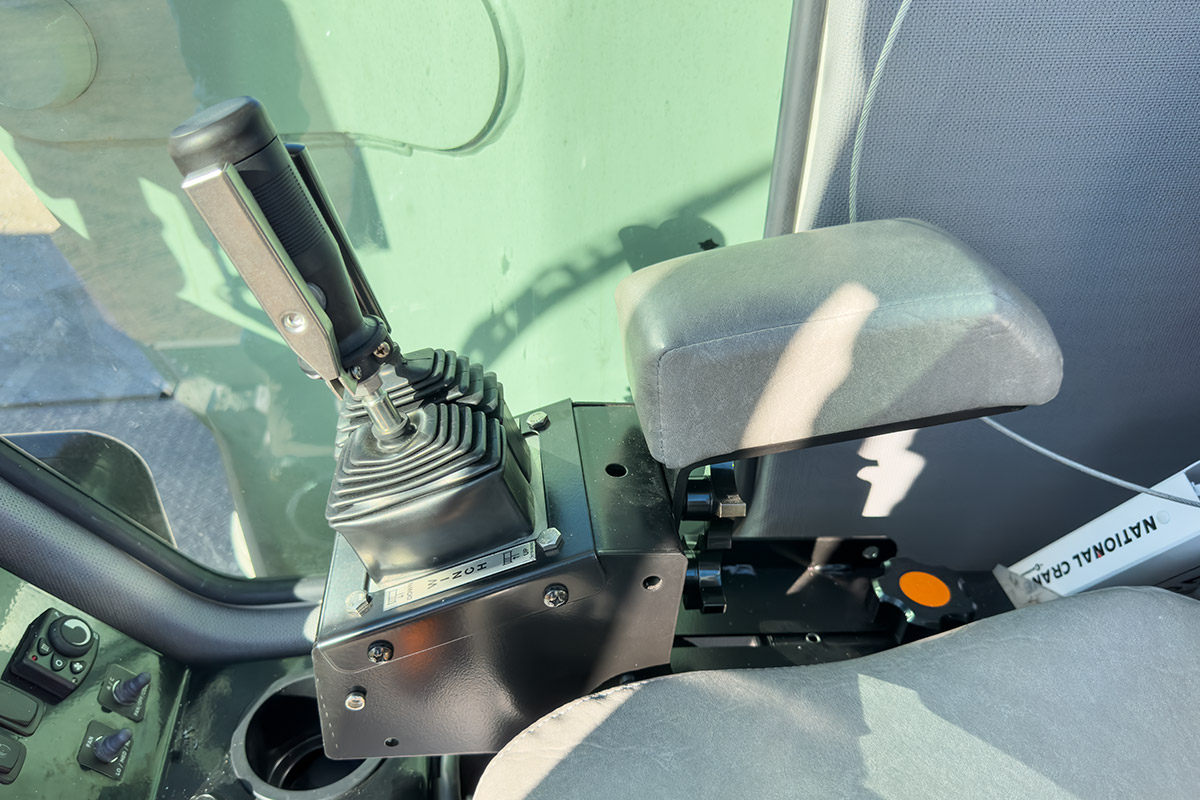

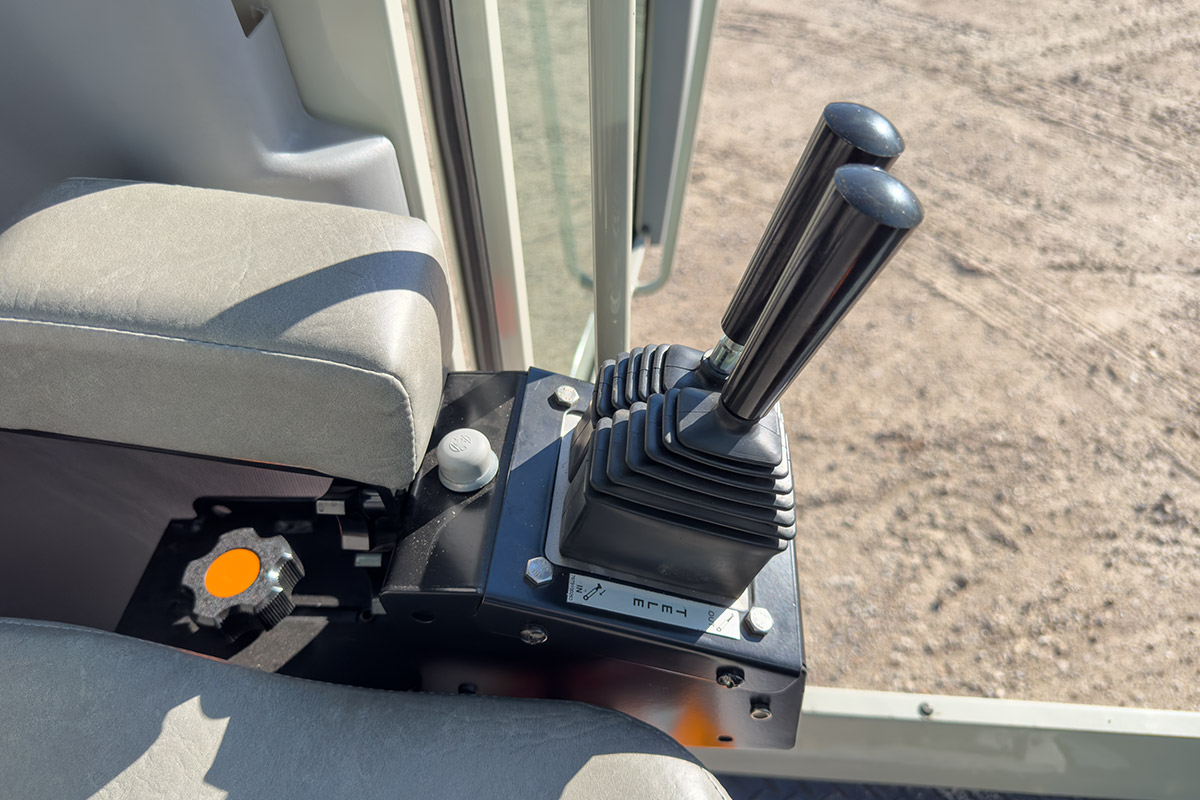

STANDARD UNITS EQUIPPED WITH THE FOLLOWING: Rated Capacity Limiter System: RCL (LMI) displays information on length and angle of boom, working radius, rated load and total weight being lifted. Standard Work Area Definition System (WADS) allows operator to pre-select and define safe working areas. Internal anti-two block wiring. Boom Elevation: One(1) double acting hydraulic lift cylinder with integral holding valve. (-10° to +80°). Crane Cab: Deluxe operator cab equipped with diesel cab heater, dome light, front and rooftop wipers, swinging door, fan, horn, control console with single axis joysticks in arm rests, hand/foot electronic throttle controls, engine start/stop switch, and LMI display. Swing: 360° continuous rotation with "Glide Swing" and manual brake in cab. Use with standard crane with no hydraulic options. Hydraulic System: Open center type consisting of a fixed displacement three section high pressure pump which supplies oil to a main control valve and winch control valve. A 76 gallon (287,6 L) reservoir with 10-micron return line filter. Oil cooler and mounting included. Ball valve on the suction line. Hoist: Planetary "burst of speed" winch. Bare drum line pull 10,200 lbs (4626 kg) low speed. Winch drum rotation indicator (WDRI) on winch control lever. Last layer indicator (LLI). Wire Rope: 390 ft (118,8 m) of 9/16" (14 mm) rotation resistant wire rope. Single line pull 7,700 lbs (3492,2 kg). Headache Ball: Round downhaul weight with top swivel, 7 ton (6,4 mt) capacity rating. Outriggers: Two sets of out and down, crossframe outriggers with 20' (6,1 m) span, outriggers can be positioned for retracted and mid-span with 14' (4,2 m) manual locks. Outriggers are provided with 20" (508 mm) dia. polymeric removable pads. Hand held pendant controls located at the rear of the crane. Torsion Box: Torsion resisting sub-base with rotating turret (no flatbed included). Provides 14' (4,2 m) bed space between outrigger and front of turret. Shear bolt mounting group included. Miscellaneous Standard Equipment: Back up alarm, hour meter in truck cab, outrigger motion alarm, parallel boom rest, rear bumper underride protection , two(2) English owner's manuals (1 paper & 1 USB flash drive) and outrigger monitoring system. PTO and mounting charges not included in standard price. Standard Paint: Valspar Duraspar® 2K Epoxy Primerand Valspar Duraspar® Ultra 2K Urethane paint- ""National Platinum"" color for cab, turret and base boom section; standard ""Black"" for hydraulic reservoir, torsion box (frame), inner outriggers, and inner boom sections.

Included options

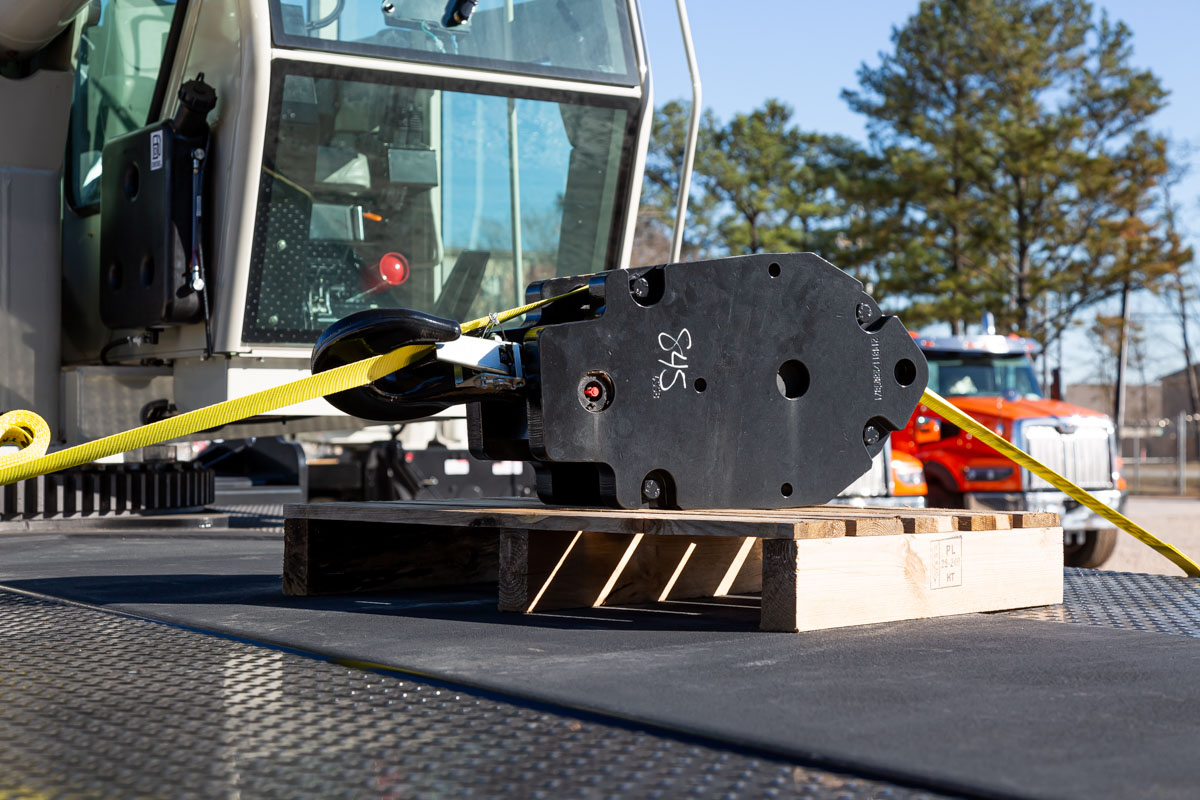

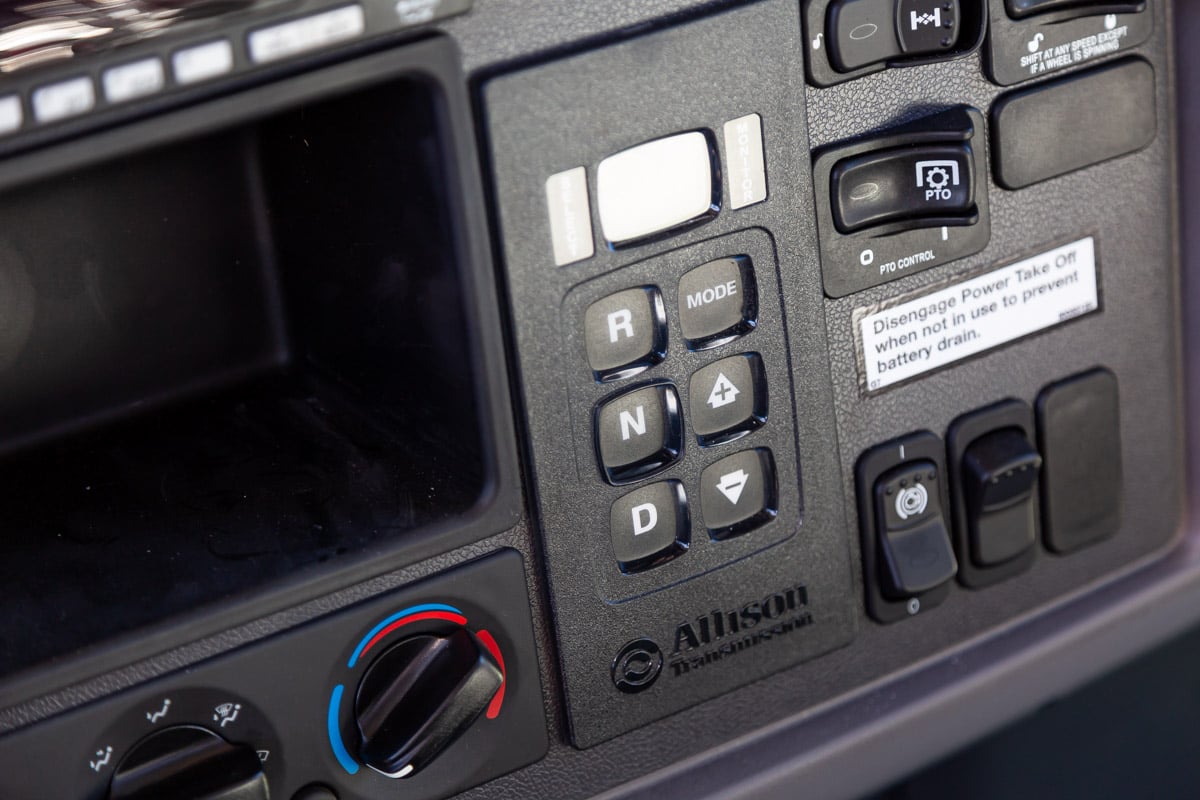

• 33' -110' (10 -33,5 m) four section, full power telescopic boom • 25' -44' (7,6 -13,4 m) Telescoping boom extension (side fold for stowing); includes 19' (5,8 m) manual pull-out. • Two and three part reeving, 15 ton (13,6 mt) capacity hook block with one sheave. • 18'8" (5,6 m) Steel tread plate wing decking with side ladder • Standard Mounting • Hot shift PTO in lieu of air shift PTO (required on automatic transmissions) • Clockwise rotation pump (Automatic Transmission ) • Drive line kit • ICC Safety Kit, includes fire extinguisher (included on mounted units) • Air conditioning for crane cab. Self-contained modular unit. • Additional outrigger controls located at operator's seat
