New

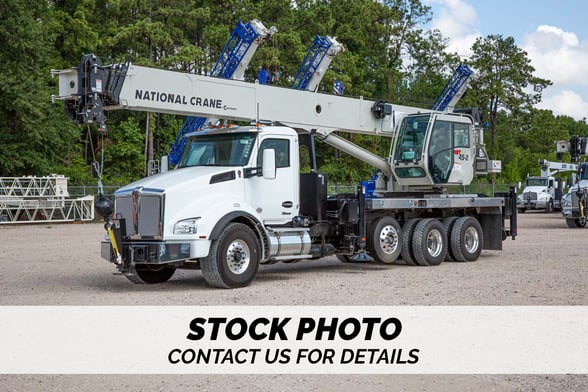

New National NBT45142-2 on New Peterbilt 567

Stock # BM-5180
Available

Contact For Price/Rate

Request a quote

Features and Options

Features

Proven controls system from the popular NBT50L Series - Real-time color display with integrated control system for truck and crane system monitoring. - Onboard diagnostic system allows for crane error code reporting to pinpoint exact trouble spot without need of a laptop. - Real-time J1939 truck diagnostic and monitoring such as engine regen status, fuel level, oil pressure, battery voltage and more. NTC Performance Package available for the additional jobsite functionality. - Provides ultimate jobsite versatility with four outrigger spans - Fast, efficient setup with wireless outrigger controls to walk around while setting up. - Two-camera system for hoist and rear viewing for increased jobsite visibility - Integrated wireless windspeed indication monitored directly on crane cab display Superstructure Redesigned Superstructure and boom, same overall weight - Significantly increased capacity for all machine configurations without the crane weight being increased. - Roading is as easy as it ever was. No truck configuration changes required from NBT40-1 Series cranes - Counterweight redesigned into a smaller envelope to reduce the overall tailswing envelope. Cab Increased Operator Centric features enhances the comfort and efficiency - NEW Standard features include: 20° tilt cab with heated seat, AM/FM/Bluetooth radio and front bumper mounted SFO/Hoist control - State of the art electric over hydraulic controls with easy adjustability to suit any operator’s preferences.

Included Options

40 ton (36,3 mt) capacity: 360o stable standard torsion box configuration 31 - 55 ft (9,4 - 16,7 m) telescoping boom extension (side fold for stowing) includes 24 ft (7,3 m) manual pull out section to 55 ft (16,7 m). Available for all boom lengths except 161' boom. Single Front Outrigger Hydraulic reservoir mounted on top of front outrigger box - default location. Yoke style, 72 in x 36 in (1829 mm x 914 mm) steel platform, gravity hung with cylinder brake lock Round Headache ball with swivel (Recommended with jib and/or aux winch option) Non supply of 20 ton (18,1 mt) single sheave hook block STANDARD MOUNTING Hot shift PTO in lieu of standard air shift PTO Clockwise rotation pump (Automatic Transmission ) Drive line kit to remote mount pump SFO mounting charge (for factory mounts) Wind speed indicator - wireless Provide 24" (609 mm) dia. aluminum outrigger pads in lieu of the standard polymeric pads
VIEW LOAD CHART

Product Specs

  • Location : Houston, TX
  • Ton-Meters : 0
  • Ton Rating: 45
  • Boom (ft) : 142
  • Type : Boom Trucks
  • Engine : Cummins ISX15
  • Horsepower : 525
  • Transmission : Eaton Endurant XD 18
  • Suspension : NeWay ADZ Air Ride
