Features

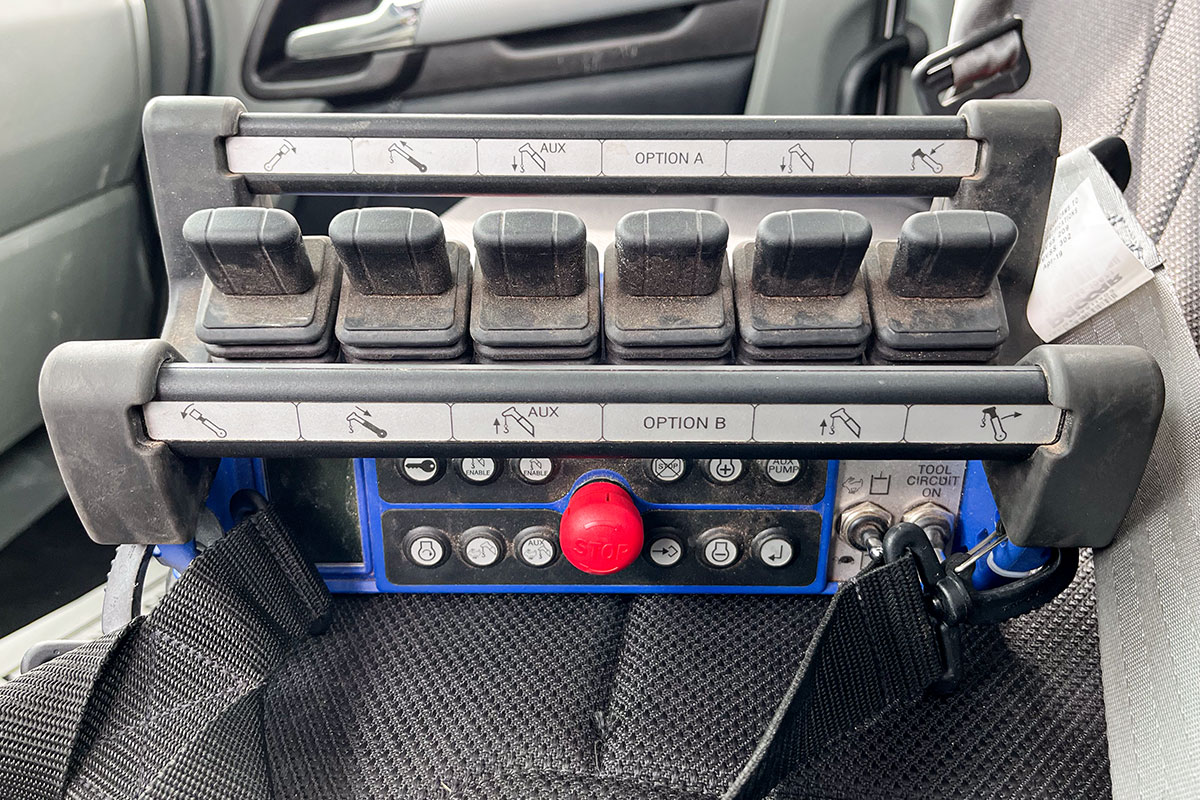

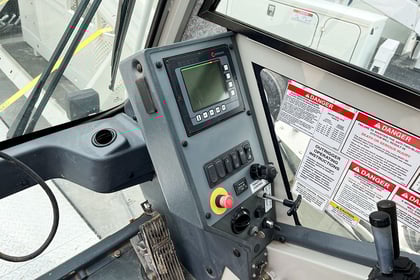

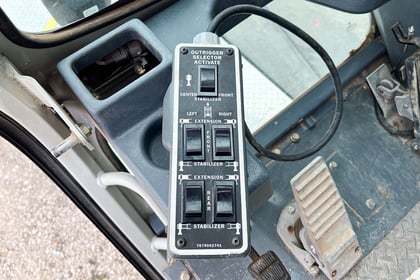

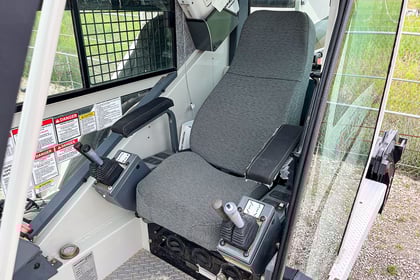

Benefits Dual-rating versatility - Fully compliant with both crane and aerial lift industry standards as well as OSHA - ROI and utilization benefits as a 45 USt (40,8 t) crane and 1200 lb (544 kg) platform capacity aerial lift - More efficient setup and operation – no test weights, no trial lifts or proof loads - Ultimate tool for your fleet Simpler, Smoother, Smarter operation - Graphical RCL for ease of setup in both crane and aerial modes - Proportional joystick control in operator cab and fully adjustable single-axis joystick in the aerial lift platform - Aerial controls feature quick setup features, real-time feedback of operating range and wind speed plus automatic function slowdowns when approaching the extents of the working range - Standard emergency lowering system with aerial lift package Enhanced Access/Egress and Setup - Strengthened decking, improved ladders for easier access - Lighter polymeric outrigger floats are easier to use and less prone to theft when on the job Field-hardened, NBT40 Series DNA - Installed base of over 1000 machines and counting - Proven standard for the boom truck market Cab controls - Armrest controls with single-axis hydraulic joystick controllers for main crane functions - Functions arranged to comply to ASME B30.5 - Hand-held outrigger control pendant with umbilical cable to allow the operator the best view of the outriggers during setup - Electric outrigger and stabilizer control - Foot controls for - Engine throttle (electronic) - Dynamic swing brake (hydraulic) - Standard features include - Heater and air-conditioning - Windshield wiper and washer - Skylight wiper - Cab-mounted work lights Outriggers - Horizontal out and down with a 24.6 ft (7,50 m) fullspan, 17.5 ft (5,34 m) mid-span and fully retracted span - Equipped with 20 in (508 mm) diameter lighter weight polymeric outrigger pads - Equipped with an outrigger in-motion alarm and Outrigger Monitoring System Winch - Two-speed high performance planetary winch with drum rotation and last layer indicators - 450 ft (137,2 m), 5/8 in (16 mm) rotation resistant wire rope which has a 11,250 lb (5102,9 kg) single line pull Boom/Jib - Boom length: 142 ft (43,3 m) - Jib length: 31 ft - 55 ft (9,4 m - 16,7 m)
