Features

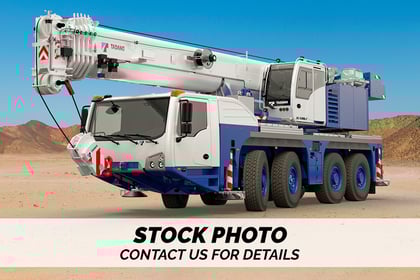

The tightest locations, the heaviest loads, the longest boom extensions In fact, with a width of 2.55m, this Tadano AC 4.100L-1 is the most compact in its class. it goes places other 4-axle cranes just can’t go With a system length of over 80 meters, the AC 4.100L-1 has the largest operating range of any all terrain crane in its class in all configurations Completely redesigned carrier and crane cabs, developed relied on extensive input from focus groups Specifications Capacity class: 100 t, 120 US-tons Main boom length: 59,4 m, 194.9 ft Main boom extension: 19 + 8 m, 62.3 + 26.2 ft Maximum system length: 54,6 + 8 + 19 = 81,6 m, 179.1 + 26.2 + 62.3 = 267.7 ft Maximum counterweight: 24,5 t, 27.0 US-tons Overall length: 13,37 m, 43.9 ft Carrier length: 10,64 m, 34.9 ft Turning radius over cabin: 9,64 m, 31.6 ft Carrier engine: 340 kW, 462 hp Superstructure engine: 129 kW, 175 hp Maximum travel speed: 85 km/h, 53 mph Drive chain (optional): 8 x 4 x 8 (8 x 6 x 8) Tires: 14.00 (16.00 / 20.5) Maximum gradeability: 70%
