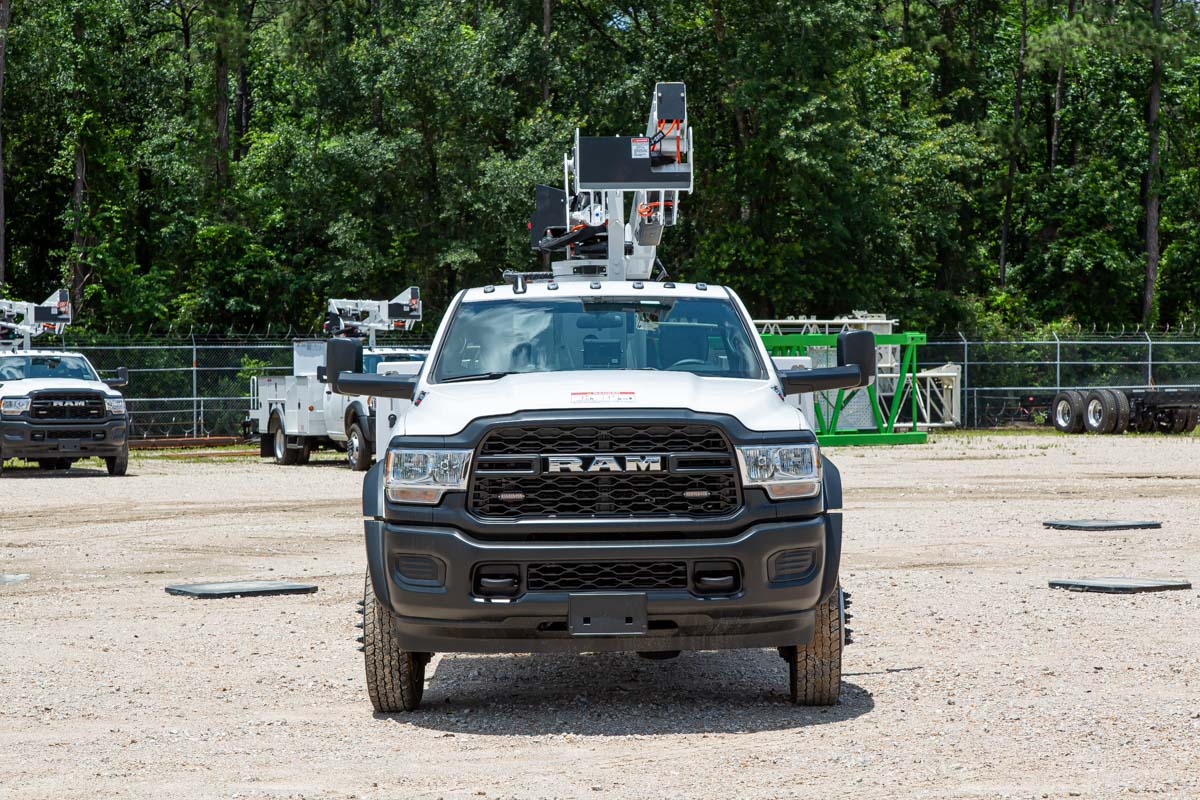

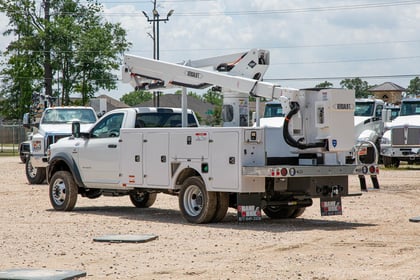

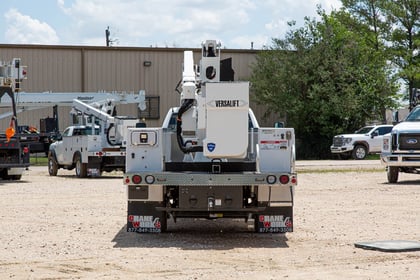

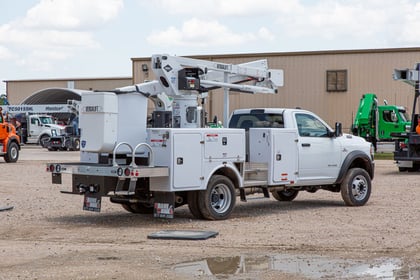

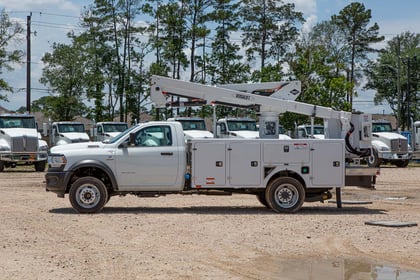

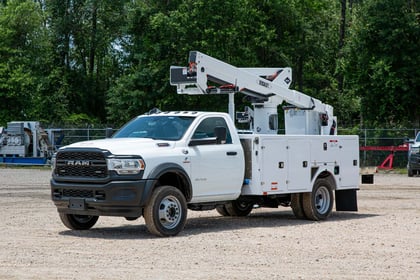

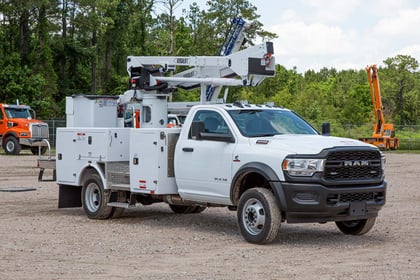

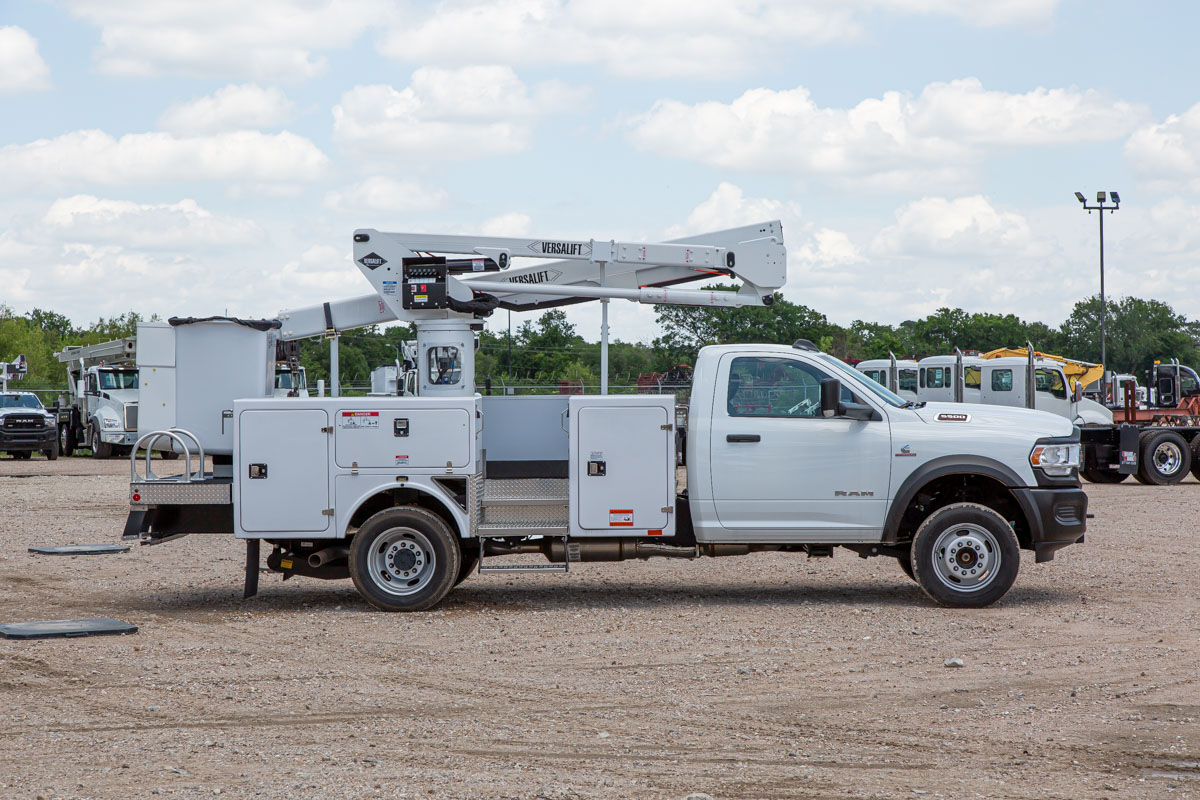

New Versalift SST-40-EIH on New Ram 5500

Stock # BM-3835

Contact For Price/Rate

Request a quote

Features and Options

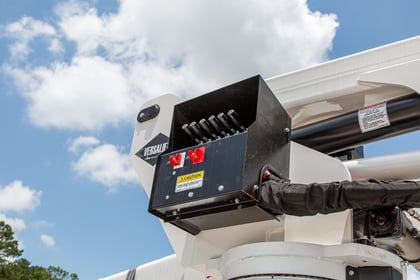

? Standard platform capacity of 350 lbs. (158.7 kg). ? VERSALIFT TruGuard™ dielectric isolating system with right hand single stick control. All control handles are isolated and tested per ANSI 92.2. The high resistive dielectric system is protected from direct environmental and job related contamination. TruGuard™ technology incorporates the use of full hydraulic controls with durable metal handles and linkages. ? 180° hydraulic platform rotator. ? Full pressure turret mounted lower controls including override. ? Engine start/stop system with controls at platform and lower controls. ? Continuous unrestricted rotation including three pass collector ring. ? Five GPM (19.0 LPM) open center hydraulic system. ? Chassis insulating system (lower boom insert) including fiberglass compensation link providing 12 inches (0.30 m) insulation gap. ?Fiberglass inner boom and patented ELECTROGARD providing 42 in. (1.07 m) insulation gap fully retracted meeting ANSI A92.2 requirements for Category C, 46 KV and below. ? Hydraulic tool power at bucket. Quick disconnect couplers not included. ? ELECTROGARD and inner boom finished with white urethane paint over white gel coat. ? Integral hydraulic oil reservoir with dual sight gauges and 15 gal. (56.8 l) capacity. ? End mounted closed 24 in. x 30 in. x 42 in. (0.61 m x 0.76 m x 1.07 m) fiberglass platform with one step, liner and cover. ? Master/slave hydraulic leveling with upper control to tilt for clean-out and rescue. Leveling control at lower controls. ? Non-lube bearings used at all pivot points. ? Multi-link hose carrier system through booms. ? Boom cradle and ratchet type tie down strap. ? Automatic throttle control. ? 12 volt DC backup pump providing power to all boom functions. ? Mounting hardware for chassis/cab installation. ? Full body harness and lanyard. ? Painted standard white urethane. ? Two operator's manuals and two service manuals. ? ANSI A92.2 data plate.

Included options

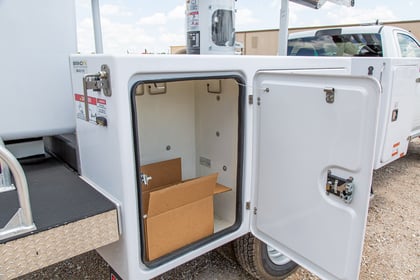

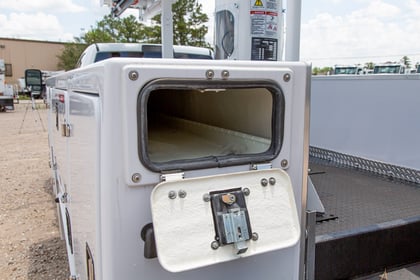

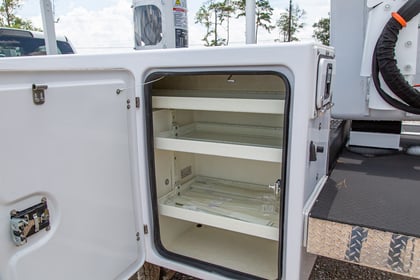

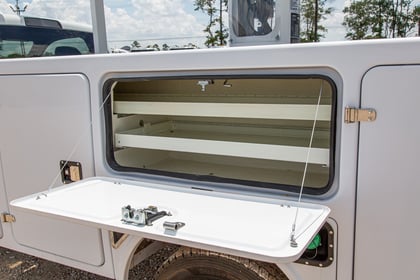

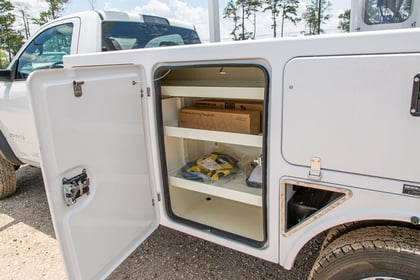

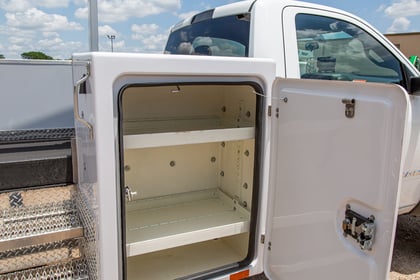

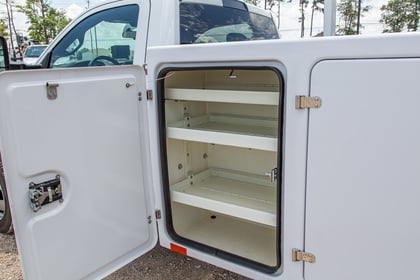

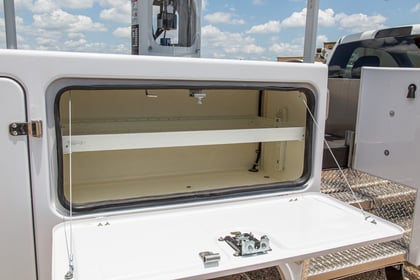

Dakota Steel Bed132” long x 40” high x 94” wide service body including the following: • 30 inch tread plate platform extension • LED lighting package installed in tail shelf with additional cutouts for strobe lights • Cable access step at rear and side access. • Two (2) chrome grab handles at side access and two (2) pool type grab handles for rear tail shelf. • Wheel chock storage with pendulum retainers and outrigger pad holders. • Master door lock hook and loop system on each door with two (2) spring loaded door handles. Excludes 1st vertical curbside • Grey Zolatone paint on the interior of compartments. • 40” High Street side compartments as follows • 1st Vertical: Two (2) adjustable shelves with dividers and cutout for outrigger • 2nd Vertical: Two (2) adjustable shelves with dividers • Horizontal: One (1) removable shelf with dividers • Rear Vertical: Two (2) adjustable shelves with dividers • Hot stick shelf with rear access door. • 40” High Curbside compartments as follows • 1st Vertical: Two (2) adjustable shelves with dividers and cutout for outrigger • 2nd Vertical: Gripstrut access steps to bed area with removable composite side gate. • Horizontal: One (1) adjustable shelf with dividers • Rear Vertical: Five (5) fixed material hooks 1-3-1Installation to include the following: • Install VERSALIFT SST-40-EIH, mounting hardware, PTO and pump. • Install rear torsion bar and ballast • Install and paint service body and accessories. • Install combination pintle hitch with 2"ball, D rings and 7 prong trailer connector • Install two (2) amber strobe lights in tail shelf and two (2) strobes lights in front grill • Install mud flaps, back up alarm and park brake interlock system. • Furnish fire extinguisher, 3-piece triangle reflector kit and wheel chocks. • Test ride completed unit for 1 hour. • Test and certify per ANSIA92.2

Product Specs

  • Location : Houston, TX
  • Ton Rating: 0.22
  • Boom (ft) : 45
  • Type : Aerial Lifts
  • Engine : Cummins 6.7 I6
  • Transmission : Aisin
  • Suspension : Spring
  • Hi-Rail : No
