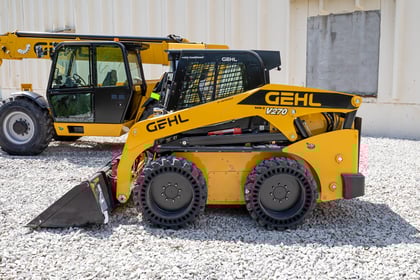

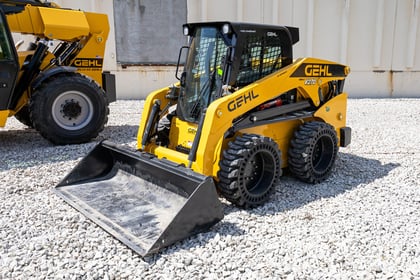

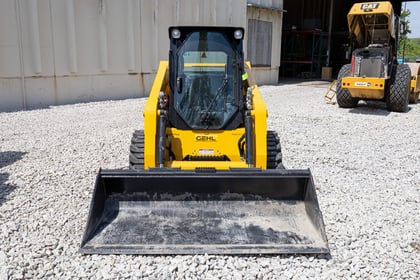

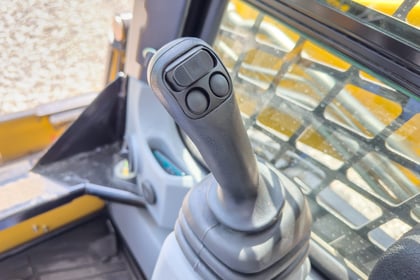

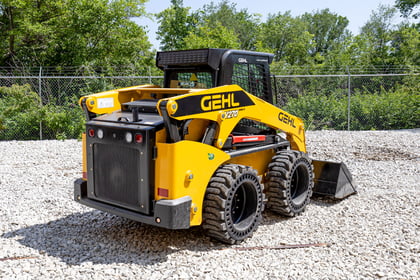

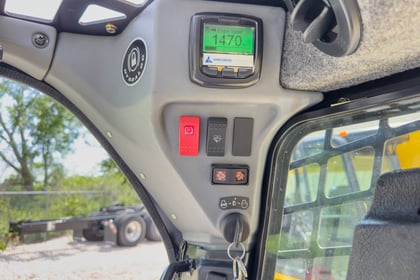

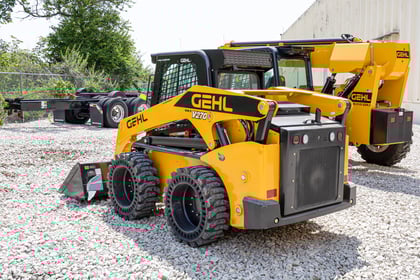

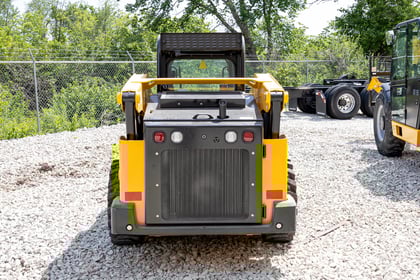

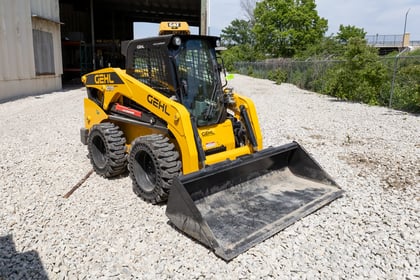

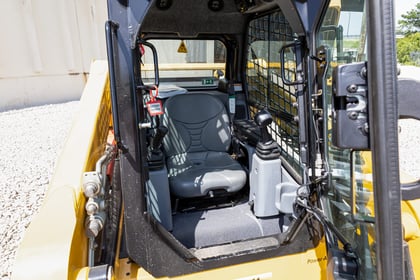

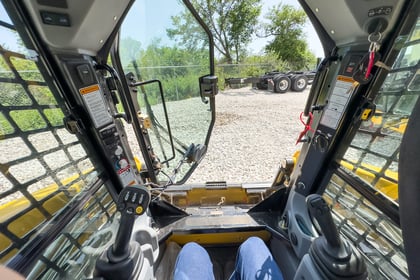

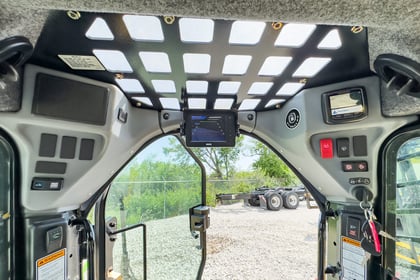

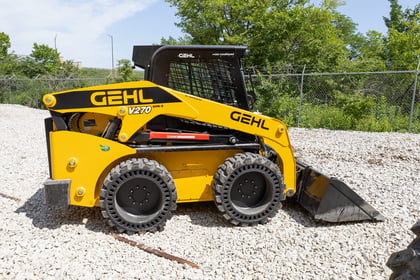

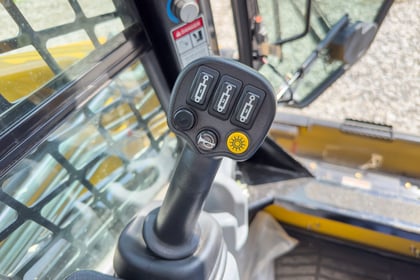

# New Gehl V270 GEN:2 vertical lift skid steer ## Specifications ### Dimensions • Overall operating height – fully raised: 167.4” • Height to hinge pin – fully raised: 130.3” • Overall height to top of ROPS: 81” • Dump height: 100” • Dump reach at full height: 32” • Wheelbase: 49.5” • Overall width less bucket: 69.5” • Ground clearance to chassis: 8” • Overall length less bucket: 116.5” • Standard specification tire size: 12.00x16.5 HD ### Engine • Manufacturer: Yanmar • Model: 4TNV98CT-NMS Tier IV • Gross power @ 2500 rpm: 72 hp • Net power @ 2500 rpm: 70.7 hp • Maximum torque @ 1625 rpm: 217 ft-lbs. ### Hydraulic system • Auxiliary hydraulics – standard: 23.5 gpm ### Capacities/Weights • Rated operating capacity: 2,700 lbs. • Fuel tank: 24.5 gal. • Maximum travel speed (2-speed option): 11.9 mph • Approx. operating weight: 8,150 lbs. ### Included options • Cab with heating system and air conditioning • Controls: joystick w/ hydraulic self-leveling • Drive system: two-speed w/ Hydraglide – all controls EXCEPT dual T-bar • Seat: high back with air-ride suspension • Seat belt: 2” shoulder • Auxiliary hydraulics: standard flow circuit – joystick and hand/foot controls • Attachment system: Power-A-Tach hydraulic actuated powered quick-attach • Tire options: 12.00 x 16.5 10-ply HD flotation • Back-up alarm: installed – all controls EXCEPT dual T-bar • Engine block heater: installed • Radio: Bluetooth radio • Counterweight: installed • Camera – rear facing: installed • Bucket: 74” HD D/C 22.8 CUFT • Cutting edge 74 (inst)
